Samkoon FAT Series Industrial PLC with 10x Faster Execution, 64 Expansion Modules, and 200kHz High-Speed Pulse Output
Compact, high-performance programmable logic controller with 10x faster execution and support for 64 expansion modules
Product Overview
The FAT series PLCs offer compact design, reliable performance, and versatile connectivity for various industrial automation applications. Available models include FAT-16MT-DC-E, FAT-16MT-DC-N, and FAT-32MT-DC.
Key Specifications
| Parameter |
Specification |
| Model Series |
FAT Series PLC |
| Power Supply |
AC 100V ~ 240V |
| Dimensions |
64*97*72mm |
| Operating Environment |
Temperature: -20°C ~ 55°C; Humidity: 5~95% (non-condensing) |
| Certifications |
CCC, ISO 9001, CE, EMC |
| Digital Inputs |
8 points (Supports SINK/SOURCE) |
| Digital Outputs |
8 points (Transistor/NPN) |
| High-Speed I/O |
4-way 200kHz high-speed pulse output; 4-way 200kHz counting input |
| Communication |
Ethernet (Modbus TCP/IP), RS485 (Modbus RTU/Free), USB port |
| Protection Rating |
IP30 |
Core Features
- High-speed processing with compiled architecture executing native code directly (10x faster than interpreted architecture)
- 4-channel 200kHz high-speed pulse outputs and 4-channel high-speed counting inputs for precise motion control
- Supports expansion of up to 64 modules via CAN communication (up to 1Mbps transmission rate)
- Comprehensive security features including multi-level password protection and upload/download security
- Multiple communication interfaces: Ethernet, RS485, and USB for flexible device networking
High-Speed Motion Control
Supports 4-channel 200kHz high-speed pulse outputs and 4-channel high-speed counting inputs for precise motion control and real-time response.

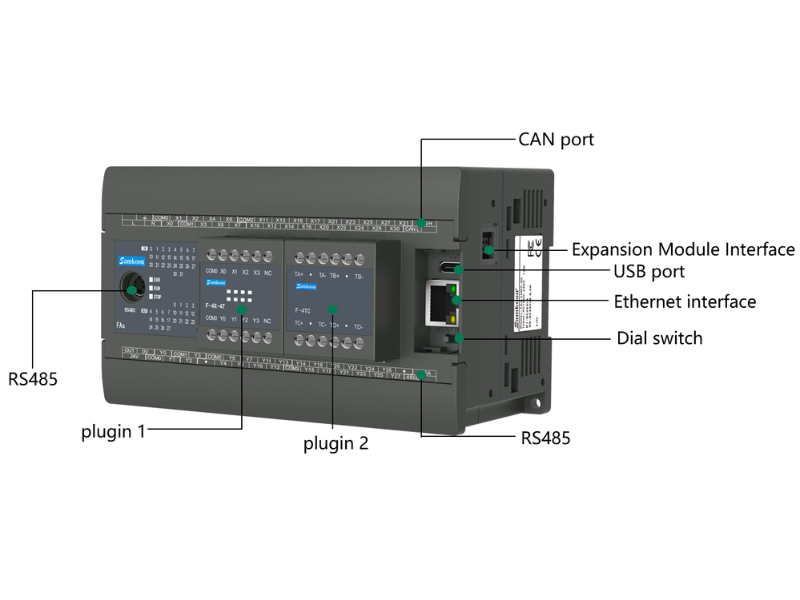

Versatile Communication Interfaces
Equipped with USB port, RS485 (supports Modbus RTU and free protocols), and optional Ethernet port (supports Modbus TCP/IP), enabling flexible device networking.
Flexible Module Expansion
Supports right-side expansion of up to 64 modules via CAN communication, with a transmission rate of up to 1Mbps for scalable system integration.
Robust Industrial Design
Compact size (64*97*72mm), operating temperature from -20°C to 55°C, vibration resistance up to 2G/30 minutes—engineered for harsh industrial conditions.
Model Naming Convention
FAT: FAT series PLC
16/32: Total input/output points (16: 8DI/8DO, 32: 16DI/16DO)
MT: Transistor output
D: DC power supply
C: Compiled type
E: With Ethernet port
N: Without Ethernet port
Detailed Specifications
| Parameter |
FAT-16MT-DC-E |
FAT-16MT-DC-N |
FAT-32MT-DC |
| Weight (g) |
239 |
239 |
205 |
| High-speed Counter |
2 single-phase (X0,X2) 200kHz, 2 single-phase (X1,X3) 20kHz |
| AB Phase Counter |
2 AB phase count (X0X1,X2X3) 200kHz |
| Digital Input |
8 |
8 |
16 |
| Digital Output |
8 |
8 |
16 |
| RS485 Ports |
1 |
2 |
2 |
| Ethernet Interface |
YES |
NO |
NO |
Key Advantages
- High-Speed Processing
- Powerful Motion Control
- Extensive Expandability
- Comprehensive Security Features
- Efficient Programming & Communication
Certifications
CE, CCC, ISO 9001 and other international certificates with domestic honors.
