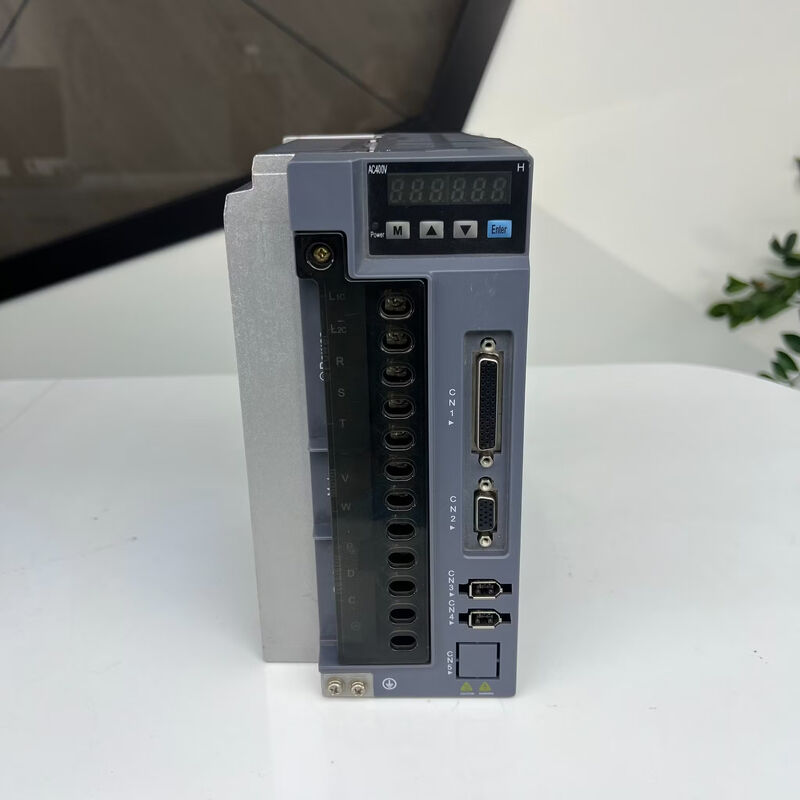

Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives
  • Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives
  • Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives
  • Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives
  • Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives
  • Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives
  • Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives
  • Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives

Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives

Product Details:
Place of Origin: CHINA
Brand Name: WEIDE
Certification: CE
Model Number: 80ST-CJ103925L5-B/1.0kw
Document: Weide Servo Catalogue-2504_...ed.pdf
Detail Information
Place of Origin:
CHINA
Brand Name:
WEIDE
Certification:
CE
Model Number:
80ST-CJ103925L5-B/1.0kw
Document:
Weide Servo Catalogue-2504_...ed.pdf
Control Mode:
Position Control
Compatible Feedback Units:
Compatible Feedback Units
Adopts The Latest Power Device IPM:
Featuring Compact Size, Strong Overload Capacity, And High Reliability
Optimized Brake Unit:
Suitable For Frequent Start-stop Applications
Simple Operation:
Convenient Trial Run, Monitoring, And Parameter Setting With Only 4 Keys
Applicable Power Range:
0.1~3.8 KW
Highlight:

High Light

Highlight:

Heavy Duty AC Servo Drive

,

Integrated Servo Motor Drives

,

Digital Servo Motor Drives

Trading Information
Minimum Order Quantity:
1
Price:
156 USD
Packaging Details:
10.00cm * 6.00cm * 12.00cm 3.5kg
Delivery Time:
15days
Payment Terms:
L/C,T/T
Supply Ability:
5000/years
Product Description
Heavy Duty AC Servo Drive with 2500PPR Incremental Encoder PWM Sine Wave Vector Control for Precision Position Control
Advanced motion automation control system designed for precision industrial applications with integrated servo drive technology.
Product Specifications
Model Number: 80ST-CJ103925L5-B/1.0kw
Mathematical Model: Linear
Signal Type: Continuous
Function: Automatic Control, Protection
Certifications: CCC, ISO: 9001, CE
Condition: New
Material: Aluminum Alloy
Input Power: Single Phase L1, L2/Three Phase L1, L2, L3 AC220V
Technical Specifications
Temperature Range Working: 0~40℃; Storing: -40~50℃
Control Type PWM Sine Wave Vector Control
Feedback Mode 2500PPR Incremental Encoder
Control Mode Position
Digital Input Srv-on/a-Clr/Ccwl/Cwl/Tccw/Tcw/E-Stop/Electronic G
Digital Output Servo Ready/Alarm/Position Completed/Speed Arrival
Monitor Function Speed, Current Position, Position Deviation, Motor
Protection Function Overspeed, Overvoltage, Overcurrent, Overload, Abnormal
Transport Package Carton
Specification 355*305*310 mm
B Series Universal Servo Driver & Motor
Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives 0
Key Features
  • Position Control Mode with adaptive feedback unit
  • 2500ppr incremental encoder and wire-saving encoder compatibility
  • Advanced IPM (Intelligent Power Module) for high reliability
  • Optimized braking unit for frequent start/stop operations
  • Easy operation with trial operation, monitoring, and parameter setting via 4 keys
  • Adaptive power range: 0.1~3.8KW
Model Specifications
Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives 1
Model No. 10B 15B 20B 30B
Output Power (KW) 0.05-0.4 0.6-1.0 1.0-1.3 1.5-3.8
Rated Torque (N.m) 0.01-1.3 1.9-4 4-10 6-15
Performance Specifications
Speed Frequency Response: >400Hz
Speed Fluctuation Ratio: <±0.03%(load 0~100%)
Speed Regulation Ratio: 1:5000
IP Grade: IP20
Humidity: Working: 40%~80%(no dew)
Technical Drawings & Diagrams
Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives 2 Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives 3
Certifications & Compliance
Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives 4 Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives 5
Industry Applications
Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives 6
Packaging & Delivery
Heavy Duty AC Servo Drive Integrated Digital Servo Motor Drives 7
