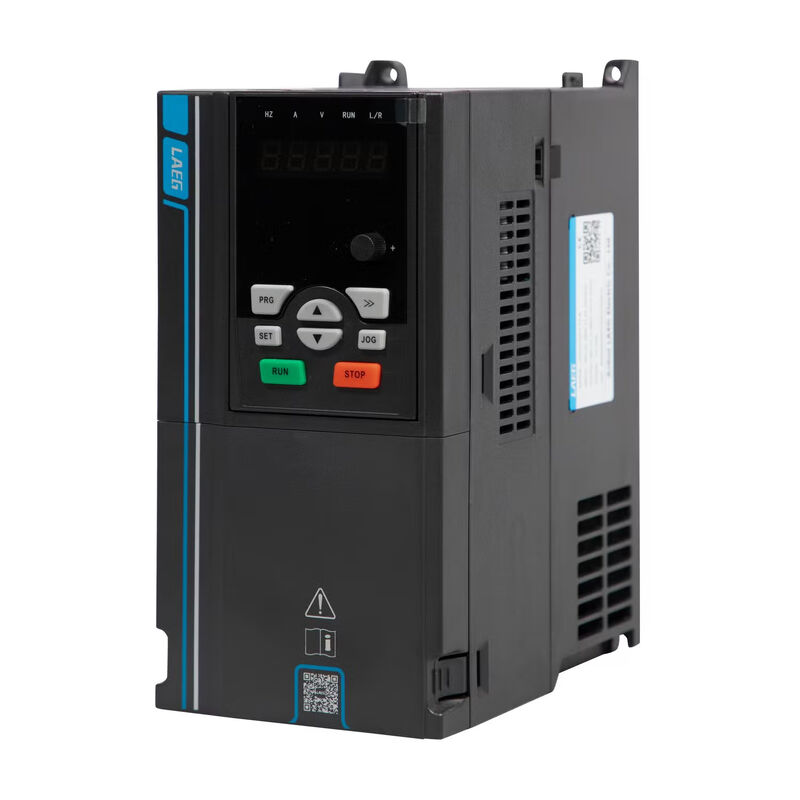

5.5kw Vector Control Variable Frequency Drive with IP55/65 Protection AC Drive Inverter
Advanced 5.5kW, 11kW, and 15kW variable frequency drives with vector control technology for industrial motor applications.
Product Specifications
Model Number: LD350-5R5G-T4B
Working Principle: Vector Control Transducer
Switch Mode: PWM Control
Power Supply: Low Voltage Variable-Frequency Drive
Transformation Link: AC-DC-AC Variable-Frequency Drive
Voltage: 380V, or Customized
Frequency: 50Hz, 60Hz
Output Frequency: 0.01-400 Hz
Protection Degree: IP55/65
Brand: Laeg
Company Profile
With over 55 years of development, Lu'an Jianghuai Motor has become a leading enterprise in the motor industry with comprehensive product series and service network. ANHUI LAEG, as a branch company, specializes in VFD production with over 20 years of expertise.
Product Advantages
- Compact Design: 30% smaller than same-power inverters with advanced modular design
- Enhanced Efficiency: Automatic motor excitation current adjustment for energy savings
- Multiple Display Options: Digital or LCD operation panels for easy monitoring and adjustment
- Universal Compatibility: Supports asynchronous motors, permanent magnet synchronous motors, and servo motors
- High Reliability: Long-life components, enhanced substrate coatings, ROHS compliant, CE certified
Technical Specifications
| Parameter |
Value |
| Model |
AD10-4R0G-T4-B |
| Motor Power (kW/Hp) |
4/5 |
| Rated Output Capacity (Kva) |
5.9 |
| Rated Output Current (A) |
9 |
| Output Frequency (Hz) |
0.01~400 |
| Carrier Frequency Range (KHz) |
1~16 |
| Overload Capacity |
150% for 60s, 200% for 3s |
| Input Current (A) |
10.5 |
| Input Voltage & Frequency |
3 phase 380V, 50~60Hz |
| Voltage Range |
315V~450V |
| Cooling System |
Forced cold air |
| Brake Unit |
In-build |
Model Comparison Table
| Input Voltage/Frequency |
Model |
Input Current (A) |
Motor Power (KW) |
Motor Horsepower (HP) |
Rated Output Capacity (KVA) |
Output Current (A) |
| 1AC 220V 50/60Hz |
AD10-0R7G-S2B |
8.2 |
0.75 |
1 |
1.5 |
4 |
| AD10-1R5G-S2B |
14 |
1.5 |
2 |
3 |
7 |
| AD10-2R2G-S2B |
23 |
2.2 |
3 |
4 |
9.6 |
| 3AC 380V 50/60Hz |
AD10-0R7G-T4B |
3.4 |
0.75 |
1 |
1.5 |
2.1 |
| AD10-1R5G-T4B |
5 |
1.5 |
2 |
3 |
3.8 |
| AD10-2R2G-T4B |
5.8 |
2.2 |
3 |
4 |
5.1 |
| AD10-4R0G-T4B |
10.5 |
3.7 |
5 |
5.9 |
9 |
| AD10-5R5G-T4B |
14.6 |
5.5 |
7.5 |
8.9 |
13 |
| AD10-7R5G-T4B |
20.5 |
7.5 |
10 |
11 |
17 |
| AD10-011G-T4B |
26 |
11 |
15 |
17 |
25 |
Applications
Suitable for power stations, metallurgy, steel, sugar making, coal mining, machinery, petroleum, chemical, water conservancy, cement, paper, environmental protection, and pharmaceutical industries.
Manufacturing Facility
Certifications
CE, ISO9001, CCC certified for quality assurance
Packaging
Frequently Asked Questions
Are you a factory or trading company?
LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We provide comprehensive pre-sale, in-sale, and after-sale service with customer-first principles for long-term cooperation.
What are your terms of delivery?
Generally FOB, with options for CNF, CIF and DDP based on customer requirements.
What's the delivery time?
15 to 35 days after receiving advance payment.
