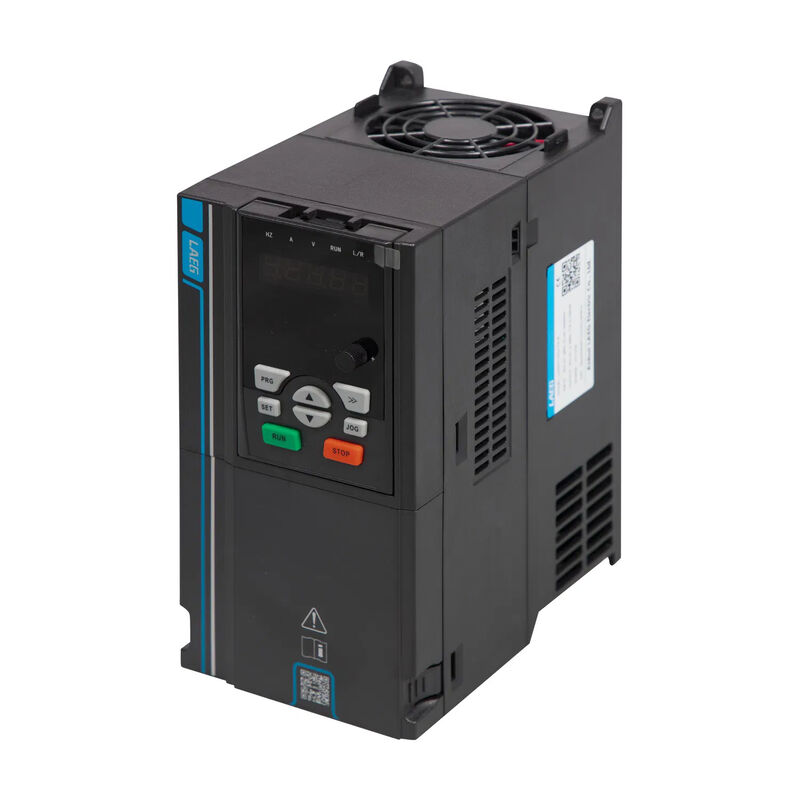

LD350 Intelligent Vector Control Variable Frequency Drive with IP55/65 Protection and 0.01-400 Hz Output Frequency
Ensuring superior accuracy across variable industrial load conditions with advanced vector control technology.
Product Specifications
Model Number: LD350-2R2G-T4B
Principle of Work: Vector Control Transducer
Switch Mode: PWM Control
Main Circuit Type: Current
Voltage of Power Supply: Low Voltage Variable-Frequency Drive
Transformation Link: AC-DC-AC Variable-Frequency Drive
Nature of DC Power: Current Variable-Frequency Drive
Function: Simple Type
Brand: Laeg
Protection Degree: IP55/65
Voltage: 380V, or Customized
Frequency: 50Hz, 60Hz
Output Frequency: 0.01-400 Hz
Transport Package: Wooden Cases
Specification: 12*9*9 cm
Trademark: LAEG
Origin: Anhui China
HS Code: 8504400090
Production Capacity: 5000/Months
Company Profile
With over 55 years of construction and development, Lu'an Jianghuai Motor has become the largest industrialized enterprise in the small, medium and large motor industry, offering the most complete product series and comprehensive service network. Our product range includes various high-efficiency and energy-saving low-voltage/high-voltage motors, DC motors, high-efficiency explosion-proof motors, special motors, permanent magnet motors, and other synchronous/asynchronous motors. ANHUI LAEG is the branch of Luan Jianghuai motor company, specializing in VFD production for over 20 years.
Luan motors are widely applied in industries including power stations, metallurgy, steel, sugar making, coal mining, machinery, petroleum, chemical engineering, water conservancy, cement, papermaking, environmental protection, and pharmaceuticals.
Inverter Advantages
- More Compact Size: Advanced modular design saves over 30% volume compared to same power inverters, providing flexible installation options
- Better Excitation Performance: Automatically adjusts motor excitation current to improve efficiency and save energy during light loads
- Variety of Display Methods: Optional digital or LCD operation panels for visual monitoring of operating parameters, facilitating maintenance and adjustments
- All Drive All-Around: Capable of driving three-phase asynchronous motors, permanent magnet synchronous motors, and servo motors in sensorless state for optimal energy efficiency
- High Reliability: Utilizes long-life fans, capacitors, and thicker standard substrate coatings to enhance reliability and resistance, meeting ROHS health and environmental requirements with CE certification
Detailed Product Specifications
| Model |
AD10-4R0G-T4-B |
|
| Adapt motor power (kw/Hp) |
4/5 |
| Rated output capacity (Kva) |
5.9 |
| Rated output current (A) |
9 |
| Output frequency (Hz) |
0.01~400 |
| Carrier frequency range (Khz) |
1~16 |
| Overload capacity |
Affordable 60s at 150% of rated output current. Affordable 3s at 200% of rated output current. |
| Input current (A) |
10.5 |
| Input voltage and frequency |
3 phase 380v, 50~60Hz |
| Voltage range |
315v~450v |
| Cooling system |
Forced cold air |
| Brake unit |
In-build |
Technical Specifications Table
| Input Voltage Frequency |
Model |
Input Current (A) |
Motor Power (KW) |
Motor Horsepower (HP) |
Rated Output Capacity (KVA) |
Output Current (A) |
Output Frequency |
Carrier Frequency |
| 1AC 220V 50/60Hz |
AD10-0R7G-S2B |
8.2 |
0.75 |
1 |
1.5 |
4 |
0.1-400HZ |
1-16KHz |
| AD10-1R5G-S2B |
14 |
1.5 |
2 |
3 |
7 |
| AD10-2R2G-S2B |
23 |
2.2 |
3 |
4 |
9.6 |
| 3AC 380V 50/60Hz |
AD10-0R7G-T4B |
3.4 |
0.75 |
1 |
1.5 |
2.1 |
0.1-400HZ |
1-16KHz |
| AD10-1R5G-T4B |
5 |
1.5 |
2 |
3 |
3.8 |
| AD10-2R2G-T4B |
5.8 |
2.2 |
3 |
4 |
5.1 |
| AD10-4R0G-T4B |
10.5 |
3.7 |
5 |
5.9 |
9 |
| AD10-5R5G-T4B |
14.6 |
5.5 |
7.5 |
8.9 |
13 |
| AD10-7R5G-T4B |
20.5 |
7.5 |
10 |
11 |
17 |
| AD10-011G-T4B |
26 |
11 |
15 |
17 |
25 |
Inverter Applications
Factory Environment
Our motor factory scale and product line, products details
Certifications
We have CE, ISO9001, CCC and other certificates
Packaging
Frequently Asked Questions
Q: Are you a factory or trading company?
A: LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
Q: What about the warranty?
A: We offer 12 month warranty period as the quality guarantee.
Q: Can you do OEM?
A: Yes, we offer OEM services.
Q: How about your service?
A: We provide comprehensive pre-sale, in-sale, and after-sale services. Our principle is customer first, pursuing long-term cooperation.
Q: What are your terms of delivery?
A: Generally we ship FOB, but we can also accommodate CNF, CIF and DDP terms based on your requirements.
Q: What's the delivery time?
A: 15 to 35 days after receiving your payment in advance.
