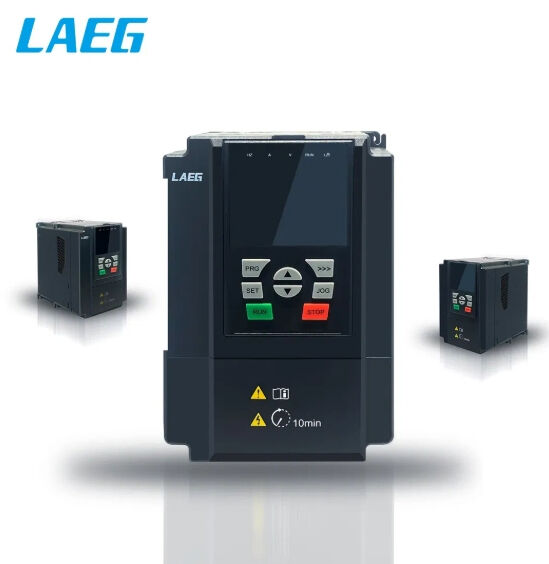

Ld320 Flexible Inverter Supporting Customized Configurations for Different Mechanical Drive Solutions
Product Overview
The LD320 series flexible inverter supports customized configurations for various mechanical drive solutions, featuring vector control technology and PWM control for precise motor operation.
Technical Specifications
| Model Number |
LD320-018G-T4B |
| Working Principle |
Vector Control Transducer |
| Switch Mode |
PWM Control |
| Power Supply Voltage |
Low Voltage Variable-Frequency Drive |
| Transformation Link |
AC-DC-AC Variable-Frequency Drive |
| Output Frequency |
0.01-400 Hz |
| Voltage |
380V, or Customized |
| Protection Degree |
IP55/65 |
| Certification |
CE, ROHS Compliant |
Manufacturer Profile
With over 55 years of development, Lu'an Jianghuai Motor has become a leading enterprise in the motor industry with comprehensive product series and service network. ANHUI LAEG, as a branch company, specializes in VFD production with over 20 years of expertise.
Product Advantages
- Compact Design: 30% smaller than same-power inverters with advanced modular design
- Enhanced Efficiency: Automatic motor excitation current adjustment for energy savings
- Multiple Display Options: Digital or LCD operation panels for easy monitoring and adjustment
- Universal Compatibility: Supports three-phase asynchronous, permanent magnet synchronous, and servo motors
- High Reliability: Long-life components and robust construction with CE certification
Detailed Specifications - AD10 Series
Model AD10-4R0G-T4-B Specifications
| Motor Power |
4 kW / 5 HP |
| Rated Output Capacity |
5.9 kVA |
| Rated Output Current |
9 A |
| Output Frequency |
0.01-400 Hz |
| Carrier Frequency |
1-16 kHz |
| Overload Capacity |
150% for 60s, 200% for 3s |
| Input Current |
10.5 A |
| Input Voltage/Frequency |
3 phase 380V, 50-60Hz |
| Voltage Range |
315V-450V |
| Cooling System |
Forced Cold Air |
| Brake Unit |
Built-in |
Complete Model Specifications
| Input Voltage |
Model |
Input Current (A) |
Motor Power (kW) |
Motor HP |
Output Capacity (kVA) |
Output Current (A) |
| 1AC 220V 50/60Hz |
AD10-0R7G-S2B |
8.2 |
0.75 |
1 |
1.5 |
4 |
| AD10-1R5G-S2B |
14 |
1.5 |
2 |
3 |
7 |
| AD10-2R2G-S2B |
23 |
2.2 |
3 |
4 |
9.6 |
| 3AC 380V 50/60Hz |
AD10-0R7G-T4B |
3.4 |
0.75 |
1 |
1.5 |
2.1 |
| AD10-1R5G-T4B |
5 |
1.5 |
2 |
3 |
3.8 |
| AD10-2R2G-T4B |
5.8 |
2.2 |
3 |
4 |
5.1 |
| AD10-4R0G-T4B |
10.5 |
3.7 |
5 |
5.9 |
9 |
| AD10-5R5G-T4B |
14.6 |
5.5 |
7.5 |
8.9 |
13 |
| AD10-7R5G-T4B |
20.5 |
7.5 |
10 |
11 |
17 |
| AD10-011G-T4B |
26 |
11 |
15 |
17 |
25 |
Application Areas
Our inverters are widely used in power stations, metallurgy, steel, sugar making, coal mining, machinery, petroleum, chemical, water conservancy, cement, paper, environmental protection, and pharmaceutical industries.
Factory Environment
Certifications
Our products meet international standards including CE, ISO9001, and CCC certifications.
Packaging
Frequently Asked Questions
Are you a factory or trading company?
LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We provide comprehensive pre-sale, in-sale, and after-sale service with customer-first principle for long-term cooperation.
What are your terms of delivery?
Generally FOB, with options for CNF, CIF and DDP based on customer requirements.
What's the delivery time?
15 to 35 days after receiving advance payment.
