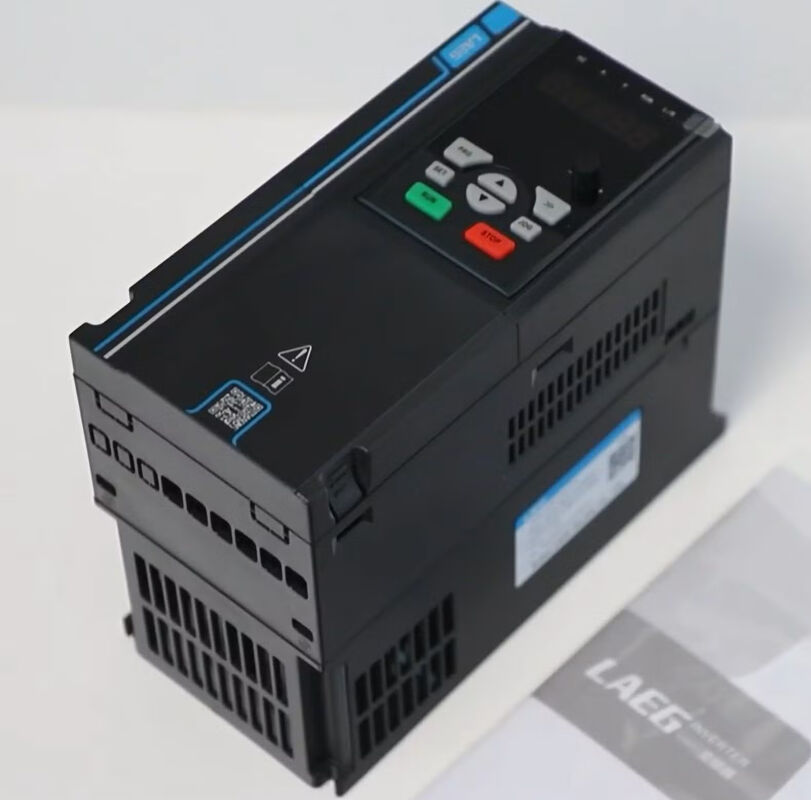

Ld320 Fully Featured Drive System Supporting High-Speed Communication and Real-Time Data Integration
High-performance variable frequency drive supporting high-speed communication and real-time data integration for industrial applications.
Product Specifications
Model Number: LD320-220G-T4
Working Principle: Vector Control Transducer
Switch Mode: PWM Control
Main Circuit Type: Current
Power Supply: Low Voltage Variable-Frequency Drive
Transformation Link: AC-DC-AC Variable-Frequency Drive
DC Power Nature: Current Variable-Frequency Drive
Function Type: Simple Type
Brand: Laeg
Protection Degree: IP55/65
Voltage: 380V, or Customized
Frequency: 50Hz, 60Hz
Output Frequency: 0.01-400 Hz
Transport Package: Wooden Cases
Specification: 12*9*9 cm
Trademark: LAEG
Origin: Anhui China
HS Code: 8504400090
Production Capacity: 5000/Months
Company Profile
With over 55 years of construction and development, Lu'an Jianghuai Motor has become the largest industrialized enterprise in the small, medium and large motor industry, offering the most complete product series and comprehensive service network. ANHUI LAEG is the branch of Luan Jianghuai Motor Company, specializing in VFD production for over 20 years.
Our extensive product range includes high-efficiency and energy-saving low-voltage/high-voltage motors, DC motors, explosion-proof motors, special motors, permanent magnet motors, and various synchronous/asynchronous motors. These products serve multiple industries including power stations, metallurgy, steel, sugar making, coal mining, machinery, petroleum, chemical engineering, water conservancy, cement, papermaking, environmental protection, and pharmaceuticals.
Inverter Advantages
- Compact Size: Advanced modular design saves over 30% volume compared to same-power inverters, providing flexible installation options
- Enhanced Excitation Performance: Automatically adjusts motor excitation current to improve efficiency and save energy during light loads
- Multiple Display Options: Choose between dual selection or LCD operation panels for better parameter visibility and maintenance convenience
- Universal Drive Compatibility: Operates three-phase asynchronous motors, permanent magnet synchronous motors, and servo motors in sensorless state for optimal energy savings
- High Reliability: Features long-life fans, capacitors, and thicker substrate coatings for enhanced durability and resistance; meets ROHS requirements and CE certification
Detailed Product Specifications
| Parameter |
Specification |
| Model |
AD10-4R0G-T4-B |
| Adapt Motor Power (kW/HP) |
4/5 |
| Rated Output Capacity (Kva) |
5.9 |
| Rated Output Current (A) |
9 |
| Output Frequency (Hz) |
0.01~400 |
| Carrier Frequency Range (KHz) |
1~16 |
| Overload Capacity |
60s at 150% rated current, 3s at 200% rated current |
| Input Current (A) |
10.5 |
| Input Voltage and Frequency |
3 phase 380V, 50~60Hz |
| Voltage Range |
315V~450V |
| Cooling System |
Forced cold air |
| Brake Unit |
In-build |
Technical Specifications Table
| Input Voltage Frequency |
Model |
Input Current (A) |
Motor Power (KW) |
Motor Horsepower (HP) |
Rated Output Capacity (KVA) |
Output Current (A) |
Output Frequency |
Carrier Frequency |
| 1AC 220V 50/60Hz |
AD10-0R7G-S2B |
8.2 |
0.75 |
1 |
1.5 |
4 |
0.1-400HZ |
1-16KHz |
| AD10-1R5G-S2B |
14 |
1.5 |
2 |
3 |
7 |
| AD10-2R2G-S2B |
23 |
2.2 |
3 |
4 |
9.6 |
| 3AC 380V 50/60Hz |
AD10-0R7G-T4B |
3.4 |
0.75 |
1 |
1.5 |
2.1 |
0.1-400HZ |
1-16KHz |
| AD10-1R5G-T4B |
5 |
1.5 |
2 |
3 |
3.8 |
| AD10-2R2G-T4B |
5.8 |
2.2 |
3 |
4 |
5.1 |
| AD10-4R0G-T4B |
10.5 |
3.7 |
5 |
5.9 |
9 |
| AD10-5R5G-T4B |
14.6 |
5.5 |
7.5 |
8.9 |
13 |
| AD10-7R5G-T4B |
20.5 |
7.5 |
10 |
11 |
17 |
| AD10-011G-T4B |
26 |
11 |
15 |
17 |
25 |
Inverter Applications
Factory Environment
Our motor factory scale, product line, and product details:
Certifications
We hold CE, ISO9001, CCC and other quality certifications
Packaging
Frequently Asked Questions
Are you a factory or trading company?
LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We provide comprehensive pre-sale, in-sale, and after-sale service. Our principle is customer first, focusing on long-term cooperation.
What are your terms of delivery?
Generally we ship FOB, but we can accommodate CNF, CIF and DDP terms based on your requirements.
What's the delivery time?
15 to 35 days after receiving your payment in advance.
