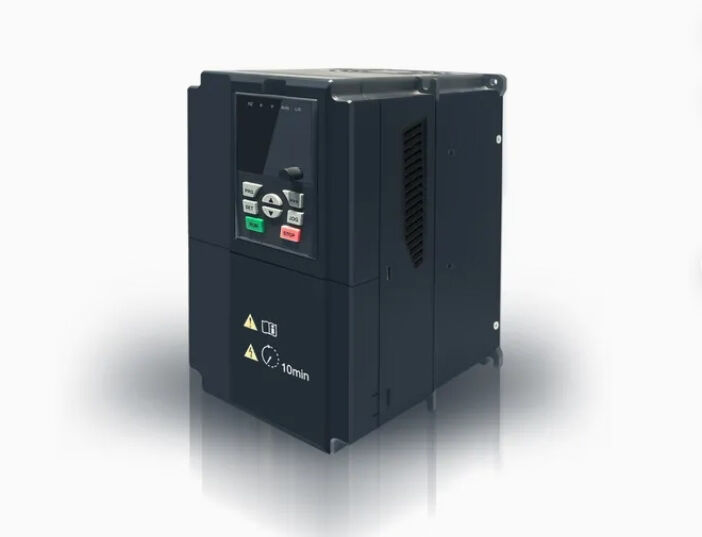

LD320 Inverter: Enhanced Energy Efficiency for Industrial Power Reduction
Advanced variable-frequency drive designed to significantly reduce power consumption in factory operations while maintaining optimal motor performance.
Product Specifications
| Model Number | LD320-630G-T4 |
|---|
| Working Principle | Vector Control Transducer |
|---|
| Switch Mode | PWM Control |
|---|
| Main Circuit Type | Current |
|---|
| Power Supply Voltage | Low Voltage Variable-Frequency Drive |
|---|
| Transformation Link | AC-DC-AC Variable-Frequency Drive |
|---|
| DC Power Nature | Current Variable-Frequency Drive |
|---|
| Function Type | Simple Type |
|---|
| Brand | Laeg |
|---|
| Protection Degree | IP55/65 |
|---|
| Voltage | 380V, or Customized |
|---|
| Frequency | 50Hz, 60Hz |
|---|
| Output Frequency | 0.01-400 Hz |
|---|
| Transport Package | Wooden Cases |
|---|
| Specification | 12*9*9 cm |
|---|
| Trademark | LAEG |
|---|
| Origin | Anhui, China |
|---|
| HS Code | 8504400090 |
|---|
| Production Capacity | 5000/Month |
|---|
Manufacturer Profile
With over 55 years of development, Lu'an Jianghuai Motor has become a leading enterprise in the motor industry, offering comprehensive product series and service networks. Specializing in high-efficiency, energy-saving motors including low-voltage/high-voltage motors, DC motors, explosion-proof motors, special motors, and permanent magnet motors. Applications span power stations, metallurgy, steel, sugar making, coal mining, petroleum, chemical engineering, and various industrial sectors. ANHUI LAEG, as a branch, focuses on VFD production with over 20 years of expertise.
Key Advantages
- Compact Design: Advanced modular design reduces volume by over 30% compared to same-power inverters
- Enhanced Excitation Performance: Automatically adjusts motor excitation current for improved efficiency and energy savings
- Multiple Display Options: Dual selection or LCD operation panels for comprehensive parameter monitoring
- Universal Drive Capability: Supports three-phase asynchronous motors, permanent magnet synchronous motors, and servo motors
- High Reliability: Long-life components and robust substrate coatings ensure durability and ROHS compliance with CE certification
Technical Specifications - AD10-4R0G-T4-B Model
| Adapt Motor Power | 4kW / 5HP |
|---|
| Rated Output Capacity | 5.9 kVA |
|---|
| Rated Output Current | 9A |
|---|
| Output Frequency | 0.01~400 Hz |
|---|
| Carrier Frequency Range | 1~16 kHz |
|---|
| Overload Capacity | 150% rated current for 60s, 200% rated current for 3s |
|---|
| Input Current | 10.5A |
|---|
| Input Voltage & Frequency | 3 phase 380V, 50~60Hz |
|---|
| Voltage Range | 315V~450V |
|---|
| Cooling System | Forced cold air |
|---|
| Brake Unit | In-built |
|---|
Complete Model Specifications
| Input Voltage/Frequency |
Model |
Input Current (A) |
Motor Power (kW) |
Motor Horsepower (HP) |
Rated Output Capacity (kVA) |
Output Current (A) |
Output Frequency |
Carrier Frequency |
| 1AC 220V 50/60Hz |
AD10-0R7G-S2B | 8.2 | 0.75 | 1 | 1.5 | 4 | 0.1-400Hz | 1-16kHz |
| AD10-1R5G-S2B | 14 | 1.5 | 2 | 3 | 7 |
| AD10-2R2G-S2B | 23 | 2.2 | 3 | 4 | 9.6 |
| 3AC 380V 50/60Hz |
AD10-0R7G-T4B | 3.4 | 0.75 | 1 | 1.5 | 2.1 | 0.1-400Hz | 1-16kHz |
| AD10-1R5G-T4B | 5 | 1.5 | 2 | 3 | 3.8 |
| AD10-2R2G-T4B | 5.8 | 2.2 | 3 | 4 | 5.1 |
| AD10-4R0G-T4B | 10.5 | 3.7 | 5 | 5.9 | 9 |
| AD10-5R5G-T4B | 14.6 | 5.5 | 7.5 | 8.9 | 13 |
| AD10-7R5G-T4B | 20.5 | 7.5 | 10 | 11 | 17 |
| AD10-011G-T4B | 26 | 11 | 15 | 17 | 25 |
Application Areas
Manufacturing Facility
Our extensive motor factory features comprehensive production lines and advanced manufacturing capabilities.
Certifications
Our products meet international standards with CE, ISO9001, CCC and other certifications.
Packaging
Frequently Asked Questions
Are you a factory or trading company?
LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We provide comprehensive pre-sale, in-sale, and after-sale services with a customer-first principle for long-term cooperation.
What are your terms of delivery?
Generally FOB, with options for CNF, CIF and DDP based on customer requirements.
What's the delivery time?
15 to 35 days after receiving advance payment.
