Home > Products >
AC Servo Drive
>

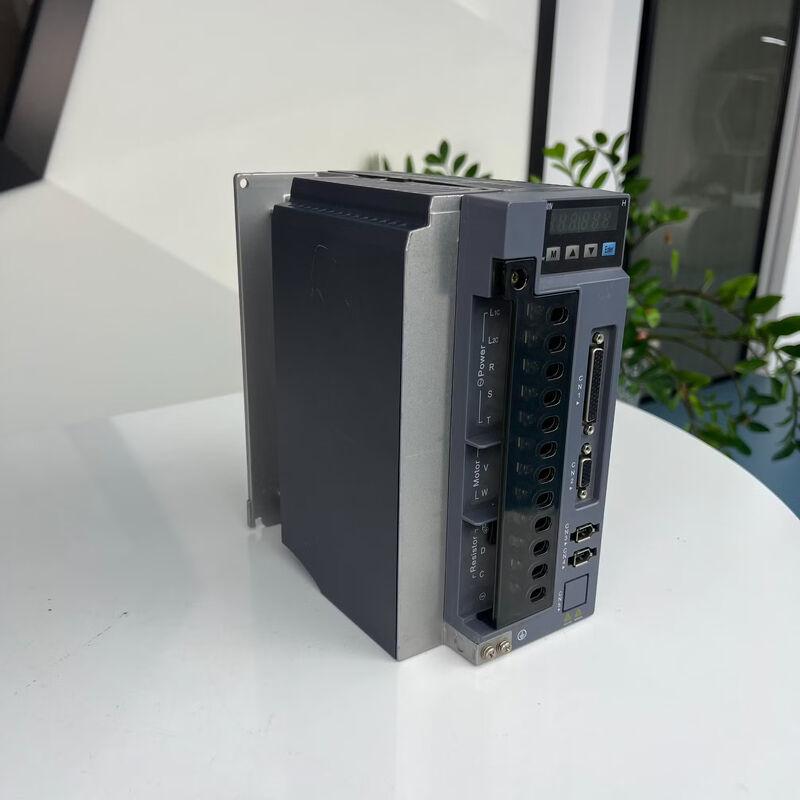

2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems
  • 2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems
  • 2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems
  • 2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems
  • 2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems
  • 2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems

2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems

Product Details:
Place of Origin: CHINA
Brand Name: WEIDE
Certification: CE
Model Number: 130ST-CJ114615L5/1.5KW
Document: Weide Servo Catalogue-2504_...ed.pdf
Detail Information
Place of Origin:
CHINA
Brand Name:
WEIDE
Certification:
CE
Model Number:
130ST-CJ114615L5/1.5KW
Document:
Weide Servo Catalogue-2504_...ed.pdf
Name:
Integrated Servo Motor And Drive
Control Mode:
Position Control
Compatible Feedback Units:
Compatible Feedback Units
Adopts The Latest Power Device IPM:
Featuring Compact Size, Strong Overload Capacity, And High Reliability
Optimized Brake Unit:
Suitable For Frequent Start-stop Applications
Simple Operation:
Convenient Trial Run, Monitoring, And Parameter Setting With Only 4 Keys
Applicable Power Range:
0.1~3.8 KW
Highlight:

High Light

Highlight:

2500PPR Integrated Servo Motor And Drive

,

Position Control Servo Drive Systems

,

2500PPR Servo Drive Systems

Trading Information
Minimum Order Quantity:
1
Price:
251 USD
Packaging Details:
10.00cm * 6.00cm * 12.00cm 3.5kg
Delivery Time:
15days
Payment Terms:
L/C,T/T
Supply Ability:
5000/years
Product Description
AC Servo Drive with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Precision Position Control
High-performance industrial automation control system component designed for precision motion control applications.
Product Specifications
Model Number 130ST-CJ114615L5/1.5KW
Mathematical Model Linear
Signal Type Continuous
Function Automatic Control, Protection
Certifications CCC, ISO: 9001, CE
Condition New
Material Aluminum Alloy
Input Power Single Phase L1, L2/Three Phase L1, L2, L3 AC220V
Temperature Range Working: 0~40℃; Storing: -40~50℃
B Series Universal Servo Driver & Motor
2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems 0
  • Control Mode: Position Control
  • Adaptive feedback unit: 2500ppr incremental encoder; 2500ppr wire-saving encoder
  • Adopting the newest IPM (intelligent power module) with small size, high over capacity and reliability
  • Optimized braking unit, ideal for frequent start and stop applications
  • Easy operation with trial operation, monitoring and parameter setting via 4 keys
  • Adaptive power range: 0.1~3.8KW
Model Specifications
2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems 1
Model No. 10B 15B 20B 30B
Output Power (KW) 0.05-0.4 0.6-1.0 1.0-1.3 1.5-3.8
Rated Torque (N.m) 0.01-1.3 1.9-4 4-10 6-15
Technical Specifications
  • Input Power: Single Phase L1,L2/Three Phase L1,L2,L3 AC220V-15%~+10%
  • Temperature: Working: 0~40℃; Storing: -40~50℃
  • Humidity: Working: 40%~80% (no dew); Storing: below 93% (no dew)
  • IP Grade: IP20
  • Control Mode: PWM sine wave vector control
  • Speed Frequency Response: >400Hz
  • Speed Regulation Ratio: 1:5000
Driver Dimensions
2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems 2
Wiring Diagram
2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems 3
Certifications & Compliance
2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems 4 2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems 5
Industry Applications
2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems 6
Packaging & Delivery
2500PPR Integrated Servo Motor And Drive Position Control Servo Drive Systems 7
