Home > Products >
AC Servo Drive
>
Position Control AC Servo Drive Smart Digital Servo Drive 220V
  • Position Control AC Servo Drive Smart Digital Servo Drive 220V
  • Position Control AC Servo Drive Smart Digital Servo Drive 220V
  • Position Control AC Servo Drive Smart Digital Servo Drive 220V
  • Position Control AC Servo Drive Smart Digital Servo Drive 220V
  • Position Control AC Servo Drive Smart Digital Servo Drive 220V
  • Position Control AC Servo Drive Smart Digital Servo Drive 220V
  • Position Control AC Servo Drive Smart Digital Servo Drive 220V

Position Control AC Servo Drive Smart Digital Servo Drive 220V

Product Details:
Place of Origin: CHINA
Brand Name: WEIDE
Certification: CE
Model Number: 40ST-CJ100330L5/0.4KW
Document: Weide Servo Catalogue-2504_...ed.pdf
Detail Information
Place of Origin:
CHINA
Brand Name:
WEIDE
Certification:
CE
Model Number:
40ST-CJ100330L5/0.4KW
Document:
Weide Servo Catalogue-2504_...ed.pdf
Name:
AC Servo Drive
Control Mode:
Position Control
Compatible Feedback Units:
Compatible Feedback Units
Adopts The Latest Power Device IPM:
Featuring Compact Size, Strong Overload Capacity, And High Reliability
Optimized Brake Unit:
Suitable For Frequent Start-stop Applications
Simple Operation:
Convenient Trial Run, Monitoring, And Parameter Setting With Only 4 Keys
Applicable Power Range:
0.1~3.8 KW
Highlight:

High Light

Highlight:

Position Control AC Servo Drive

,

Smart Digital Servo Drive

,

Digital Servo Drive 220V

Trading Information
Minimum Order Quantity:
1
Price:
133 USD
Packaging Details:
10.00cm * 6.00cm * 12.00cm 3.5kg
Delivery Time:
15days
Payment Terms:
L/C,T/T
Supply Ability:
5000/years
Product Description
High Performance AC Servo Drive with 2500PPR Incremental Encoder, PWM Sine Wave Vector Control, and Position Control for Precision Industrial Motion
Precision industrial motion control system for automated applications requiring high accuracy and reliability.
Product Specifications
Model Number
40ST-CJ100330L5/0.4KW
Mathematical Model
Linear
Certifications
CCC, ISO 9001, CE
Material
Aluminum Alloy
Input Power
Single Phase L1, L2 / Three Phase L1, L2, L3 AC220V
Operating Temperature
Working: 0~40℃; Storing: -40~50℃

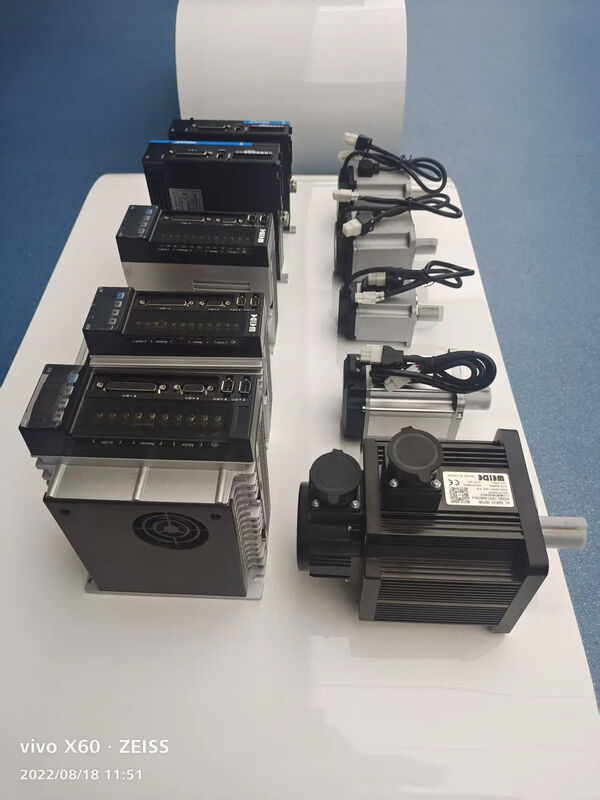

B Series Universal Servo Driver & Motor
Position Control AC Servo Drive Smart Digital Servo Drive 220V 0
  • Position control mode with adaptive feedback
  • 2500ppr incremental encoder and wire-saving encoder
  • Intelligent Power Module (IPM) for compact size and high reliability
  • Optimized braking unit for frequent start/stop operations
  • Easy operation with trial run, monitoring, and parameter settings via 4 keys
  • Power range: 0.1~3.8KW
Model Specifications
Position Control AC Servo Drive Smart Digital Servo Drive 220V 1
Model No. Output Power (KW) Rated Torque (N.m)
10B 0.05-0.4 0.01-1.3
15B 0.6-1.0 1.9-4
20B 1.0-1.3 4-10
30B 1.5-3.8 6-15
Technical Specifications
  • Control Mode: PWM sine wave vector control
  • Feedback Mode: 2500PPR incremental encoder
  • Speed Frequency Response: >400Hz
  • Speed Regulation Ratio: 1:5000
  • IP Grade: IP20
  • Humidity: Working 40%~80% (no dew); Storing below 93% (no dew)
Driver Dimensions
Position Control AC Servo Drive Smart Digital Servo Drive 220V 2
Wiring Diagram
Position Control AC Servo Drive Smart Digital Servo Drive 220V 3
Certifications & Compliance
Position Control AC Servo Drive Smart Digital Servo Drive 220V 4 Position Control AC Servo Drive Smart Digital Servo Drive 220V 5
Industry Applications
Position Control AC Servo Drive Smart Digital Servo Drive 220V 6
Packaging & Delivery
Position Control AC Servo Drive Smart Digital Servo Drive 220V 7

Tags:

Industrial Servo Drive,

Servo Drive System,

Motion Control Servo Drive
