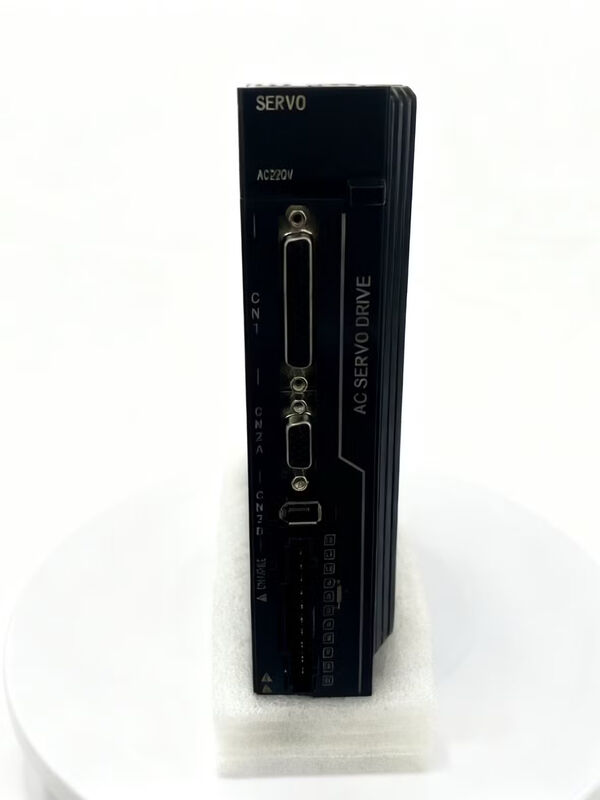

0.1KW - 3.8KW AC Servo Drive Intelligent Servo Motor With Drive

Name: 0.1KW - 3.8KW AC Servo Drive Intelligent Servo Motor With Drive
Brand: shenzhen laeg electric technologies co.,ltd.
SKU: 130ST-CJ108425L5/2/2KW
Price: 240 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	WEIDE
Certification:	CE
Model Number:	130ST-CJ108425L5/2/2KW
Document:	Weide Servo Catalogue-2504_...ed.pdf

Detail Information

Place of Origin:

CHINA

Brand Name:

WEIDE

Certification:

Model Number:

130ST-CJ108425L5/2/2KW

Document:

Weide Servo Catalogue-2504_...ed.pdf

Name:

AC Servo Drive

Control Mode:

Position Control

Compatible Feedback Units:

Compatible Feedback Units

Adopts The Latest Power Device IPM:

Featuring Compact Size, Strong Overload Capacity, And High Reliability

Optimized Brake Unit:

Suitable For Frequent Start-stop Applications

Simple Operation:

Convenient Trial Run, Monitoring, And Parameter Setting With Only 4 Keys

Applicable Power Range:

0.1~3.8 KW

Highlight:

High Light

Highlight:

0.1KW AC Servo Drive

3.8KW AC Servo Drive

Intelligent Servo Motor With Drive

Trading Information

Minimum Order Quantity:

Price:

240 USD

Packaging Details:

10.00cm * 6.00cm * 12.00cm 3.5kg

Delivery Time:

15days

Payment Terms:

L/C,T/T

Supply Ability:

5000/years

Product Description

Intelligent AC Servo Drive with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Precision Position Control

High-performance automation motion control system designed for precision industrial applications with advanced digital control capabilities.

Product Specifications

Model Number	130ST-CJ108425L5/2/2KW
Mathematical Model	Linear
Certifications	CCCISO 9001CE
Input Power	Single Phase L1, L2 / Three Phase L1, L2, L3 AC220V
Control Type	PWM Sine Wave Vector Control
Feedback Mode	2500PPR Incremental Encoder
Operating Temperature	Working: 0~40℃; Storage: -40~50℃

B Series Universal Servo Driver & Motor

Position Control Mode with adaptive feedback
2500ppr incremental encoder and wire-saving encoder options
Advanced IPM (Intelligent Power Module) for high reliability
Optimized braking unit for frequent start/stop operations
Easy operation with 4-key interface for testing and monitoring
Power range: 0.1~3.8KW

Model Specifications

Model No.	10B	15B	20B	30B
Output Power (KW)	0.05-0.4	0.6-1.0	1.0-1.3	1.5-3.8
Rated Torque (N.m)	0.01-1.3	1.9-4	4-10	6-15

Technical Specifications

Input Power	Single Phase L1,L2 / Three Phase L1,L2,L3 AC220V ±15%
Operating Conditions	Temperature: 0~40℃; Humidity: 40%~80% (no dew)
IP Grade	IP20
Control Mode	PWM sine wave vector control
Speed Frequency Response	>400Hz
Speed Regulation Ratio	1:5000
