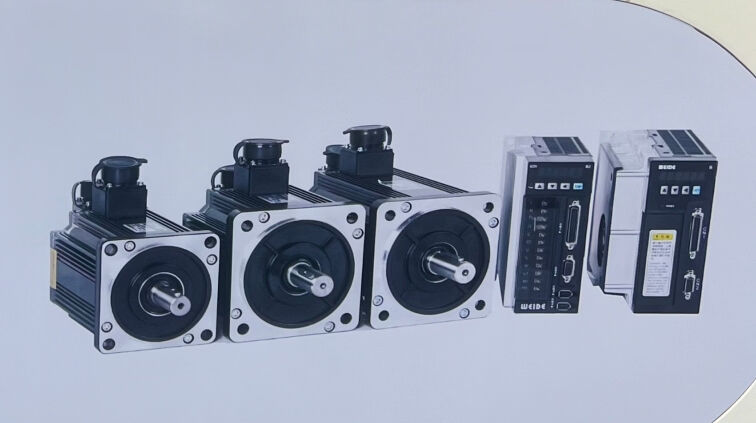

High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive
High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive
  • High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive
  • High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive
  • High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive
  • High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive
  • High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive
  • High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive

High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive

Product Details:
Place of Origin: CHINA
Brand Name: WEIDE
Certification: CE
Model Number: 180ST-M19015H4/3.0kw
Document: Weide Servo Catalogue-2504_...ed.pdf
Detail Information
Place of Origin:
CHINA
Brand Name:
WEIDE
Certification:
CE
Model Number:
180ST-M19015H4/3.0kw
Document:
Weide Servo Catalogue-2504_...ed.pdf
Name:
AC Servo Drive
Control Mode:
Position Control
Compatible Feedback Units:
Compatible Feedback Units
Adopts The Latest Power Device IPM:
Featuring Compact Size, Strong Overload Capacity, And High Reliability
Optimized Brake Unit:
Suitable For Frequent Start-stop Applications
Simple Operation:
Convenient Trial Run, Monitoring, And Parameter Setting With Only 4 Keys
Applicable Power Range:
0.1~3.8 KW
Highlight:

High Light

Highlight:

High Accuracy AC Servo Drive

,

AC Servo Drive IP20

,

IP20 Servo Motor With Integrated Drive

Trading Information
Minimum Order Quantity:
1
Price:
606 USD
Packaging Details:
10.00cm * 6.00cm * 12.00cm 3.5kg
Delivery Time:
15days
Payment Terms:
L/C,T/T
Supply Ability:
5000/years
Product Description
High Accuracy AC Servo Drive with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Precision Position Control
Precision motion control solution featuring integrated servo drive technology for industrial automation applications.
Model Number
180ST-M19015H4/3.0kw
Mathematical Model
Linear
Certifications
CCC, ISO 9001, CE
Material
Aluminum Alloy
Input Power
Single Phase L1, L2 / Three Phase L1, L2, L3 AC220V
Operating Temperature
Working: 0~40℃; Storing: -40~50℃
B Series Universal Servo Driver & Motor Features
High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive 0
  • Position Control Mode with adaptive feedback unit
  • 2500ppr incremental encoder and wire-saving encoder compatibility
  • Advanced IPM (Intelligent Power Module) for high reliability
  • Optimized braking unit for frequent start/stop operations
  • Easy operation with trial operation, monitoring, and parameter setting via 4 keys
  • Adaptive power range: 0.1~3.8KW
Technical Specifications
High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive 1
Model No. 10B 15B 20B 30B
Output Power (KW) 0.05-0.4 0.6-1.0 1.0-1.3 1.5-3.8
Rated Torque (N.m) 0.01-1.3 1.9-4 4-10 6-15
Control & Performance Specifications
  • Control Mode: PWM sine wave vector control
  • Feedback Mode: 2500PPR incremental encoder
  • Speed Frequency Response: >400Hz
  • Speed Regulation Ratio: 1:5000
  • Speed Fluctuation Ratio: <±0.03% (load 0~100%)
  • IP Grade: IP20
  • Humidity: Working 40%~80% (no dew); Storing below 93% (no dew)
Digital I/O & Monitoring
  • Digital Input: Servo-on, Clear, Limit switches, Emergency stop, Electronic gear
  • Digital Output: Servo ready, Alarm, Position completed, Speed arrival
  • Monitor Functions: Speed, current position, position deviation, motor torque, motor current
  • Protection Functions: Overspeed, overvoltage, overcurrent, overload, encoder abnormality
Technical Drawings & Wiring
High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive 2 High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive 3
Certifications & Compliance
High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive 4 High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive 5
Industry Applications
High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive 6
Packaging & Delivery
High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive 7
Transport Package: Carton | Specification: 355*305*310 mm
