Home > Products >
AC Servo Motor
>

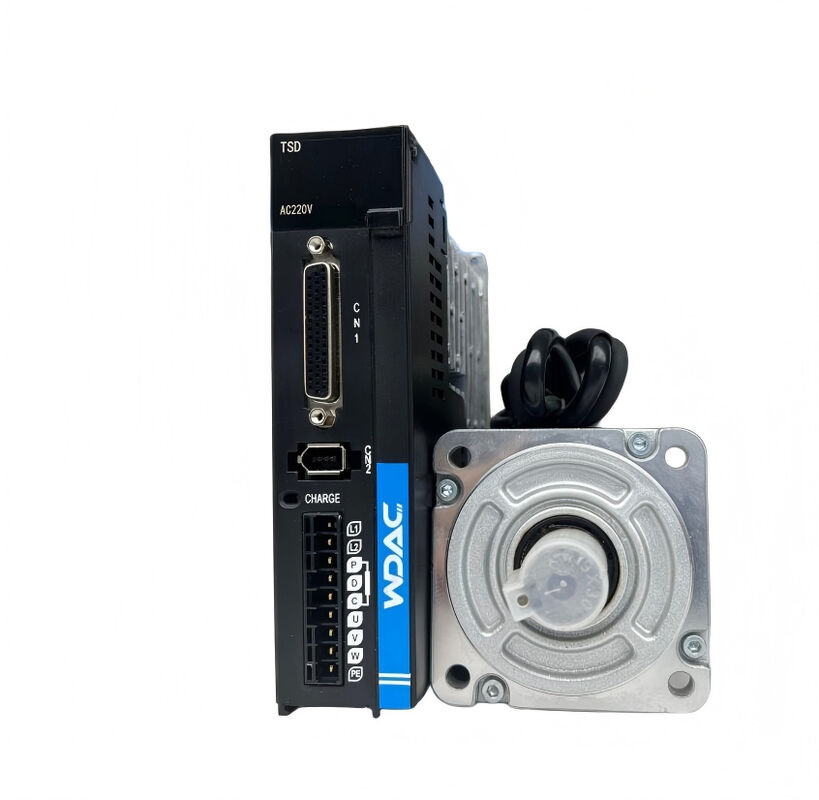

220V / 380V High Precision Servo Motor 850W Servo Motor And Driver
  • 220V / 380V High Precision Servo Motor 850W Servo Motor And Driver
  • 220V / 380V High Precision Servo Motor 850W Servo Motor And Driver
  • 220V / 380V High Precision Servo Motor 850W Servo Motor And Driver
  • 220V / 380V High Precision Servo Motor 850W Servo Motor And Driver
  • 220V / 380V High Precision Servo Motor 850W Servo Motor And Driver
  • 220V / 380V High Precision Servo Motor 850W Servo Motor And Driver
  • 220V / 380V High Precision Servo Motor 850W Servo Motor And Driver

220V / 380V High Precision Servo Motor 850W Servo Motor And Driver

Product Details:
Place of Origin: CHINA
Brand Name: WEIDE
Certification: CE
Model Number: 850W
Document: Weide Servo Catalogue-2504_...ed.pdf
Detail Information
Place of Origin:
CHINA
Brand Name:
WEIDE
Certification:
CE
Model Number:
850W
Document:
Weide Servo Catalogue-2504_...ed.pdf
Name:
High Precision Servo Motor
WDM4:
High-Precision Universal Permanent Magnet 8-Pole AC Servo Motor
Feedback Units Available:
2500-line Incremental Encoder; 2500-line Line-saving Encoder; 17-bit Single-turn Absolute Photoelectric Encoder; 17-bit Multi-turn Absolute Photoelectric Encoder; 23-bit Single-turn Absolute Photoelectric Encoder; 23-bit Multi-turn Absolute Photoelectric E
Compatible Drivers:
German B, B2, B2D, B2E, EH Series Drivers
Power Range:
0.1~7.5 KW
Motor Frame Sizes:
60mm, 80mm, 90mm, 110mm, 130mm, 180mm (six Sizes Available)
Motor Components:
Support Brake, Oil Seal
Highlight:

High Light

Highlight:

220V High Precision Servo Motor

,

380V High Precision Servo Motor

,

850W Servo Motor And Driver

Trading Information
Minimum Order Quantity:
1
Price:
210 usd
Packaging Details:
10.00cm * 6.00cm * 12.00cm 3.5kg
Delivery Time:
15days
Payment Terms:
L/C,T/T
Supply Ability:
5000/years
Product Description
Economical B2 Series AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
220V/380V servo system with brake for industrial automation applications
Product Overview
220V / 380V High Precision Servo Motor 850W Servo Motor And Driver 0
Model No.: 850W
Mathematical Model: Linear
Signal Type: Continuous
Function: Automatic Control, Protection
Certifications: CCC, ISO 9001, CE
Condition: New
Material: Aluminum Alloy
Input Power: Single Phase L1, L2 / Three Phase L1, L2, L3 AC220V
Temperature Range: Working: 0~40℃; Storing: -40~50℃
Key Features
  • Position control mode with PWM sine wave vector control
  • 2500PPR incremental encoder feedback
  • Intelligent Power Module (IPM) for high reliability
  • Optimized braking unit for frequent start/stop operations
  • Easy operation with 4-key interface for trial operation and monitoring
  • Adaptive power range: 0.1~3.8KW
  • Speed frequency response: >400Hz
  • Speed regulation ratio: 1:5000
Model Specifications
220V / 380V High Precision Servo Motor 850W Servo Motor And Driver 1
Model No. 10B 15B 20B 30B
Output Power (KW) 0.05-0.4 0.6-1.0 1.0-1.3 1.5-3.8
Rated Torque (N.m) 0.01-1.3 1.9-4 4-10 6-15
Input Power: Single Phase L1,L2 / Three Phase L1,L2,L3 AC220V-15%~+10%
Temperature: Working: 0~40℃; Storing: -40~50℃
Humidity: Working: 40%~80% (no dew); Storing: below 93% (no dew)
IP Grade: IP20
Technical Specifications
Control Mode: PWM sine wave vector control
Regenerative Braking: Built-in brake resistor for power above 0.4KW
Feedback Mode: 2500PPR incremental encoder
Digital Input: Multiple control signals including servo on, clear, and direction commands
Digital Output: Status signals including servo ready, alarm, and position completed
Protection Functions: Overspeed, overvoltage, overcurrent, overload, and position error detection
Dimensions & Wiring
220V / 380V High Precision Servo Motor 850W Servo Motor And Driver 2 220V / 380V High Precision Servo Motor 850W Servo Motor And Driver 3
Certifications & Compliance
220V / 380V High Precision Servo Motor 850W Servo Motor And Driver 4 220V / 380V High Precision Servo Motor 850W Servo Motor And Driver 5
Industry Applications
220V / 380V High Precision Servo Motor 850W Servo Motor And Driver 6
Packaging & Delivery
220V / 380V High Precision Servo Motor 850W Servo Motor And Driver 7
Transport Package: Carton | Specification: 355*305*310 mm
