3kw Closed Loop Servo System High Temperature Resistant Servo Control System

Name: 3kw Closed Loop Servo System High Temperature Resistant Servo Control System
Brand: shenzhen laeg electric technologies co.,ltd.
SKU: 3.0kw
Price: 537 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	WEIDE
Certification:	CE
Model Number:	3.0kw
Document:	Weide Servo Catalogue-2504_...ed.pdf

Detail Information

Place of Origin:

CHINA

Brand Name:

WEIDE

Certification:

Model Number:

3.0kw

Document:

Weide Servo Catalogue-2504_...ed.pdf

Name:

Closed Loop Servo System

WDM4:

High-Precision Universal Permanent Magnet 8-Pole AC Servo Motor

Feedback Units Available:

2500-line Incremental Encoder; 2500-line Line-saving Encoder; 17-bit Single-turn Absolute Photoelectric Encoder; 17-bit Multi-turn Absolute Photoelectric Encoder; 23-bit Single-turn Absolute Photoelectric Encoder; 23-bit Multi-turn Absolute Photoelectric E

Compatible Drivers:

German B, B2, B2D, B2E, EH Series Drivers

Power Range:

0.1~7.5 KW

Motor Frame Sizes:

60mm, 80mm, 90mm, 110mm, 130mm, 180mm (six Sizes Available)

Motor Components:

Support Brake, Oil Seal

Highlight:

High Light

Highlight:

3kw Closed Loop Servo System

High Temperature Resistant Servo Control System

Servo Control System 3kw

Trading Information

Minimum Order Quantity:

Price:

537 usd

Packaging Details:

10.00cm * 6.00cm * 12.00cm 3.5kg

Delivery Time:

15days

Payment Terms:

L/C,T/T

Supply Ability:

5000/years

Product Description

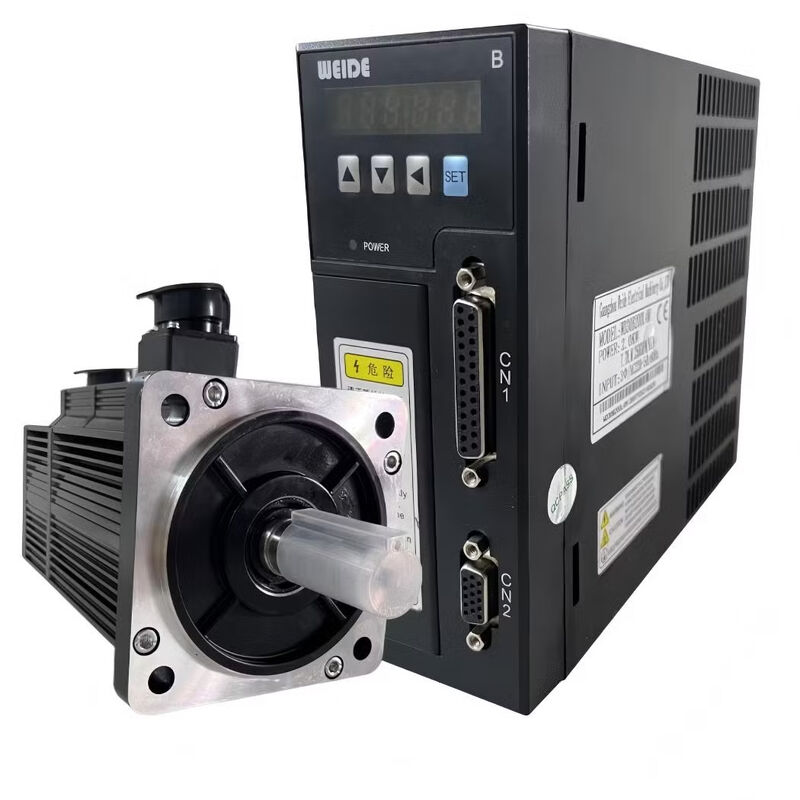

3kw Closed-Loop Automatic Control High-Temperature Resistant AC Servo Motor and Drive System

Model Number

3.0kW

Mathematical Model

Linear

Signal Type

Continuous

Function

Automatic Control, Protection

Certifications

CCC, ISO: 9001, CE

Condition

New

Material

Aluminum Alloy

Input Power

Single Phase L1, L2/Three Phase L1, L2, L3 AC220V

Temperature Range

Working: 0~40℃; Storing: -40~50℃

Product Overview

B Series Universal Servo Driver & Motor Features

Control Mode: Position Control
Adaptive feedback unit: 2500ppr incremental encoder; 2500ppr wire-saving encoder
Adopting the newest IPM (intelligent power module) with small size, high over capacity and reliability
Optimized braking unit, adapted to frequent start and stop situations
Easy to operate with trial operation, monitoring and parameter setting via 4 keys
Adaptive power: 0.1~3.8KW

Model Specifications

Model No.	10B	15B	20B	30B
Output Power (KW)	0.05-0.4	0.6-1.0	1.0-1.3	1.5-3.8
Rated Torque (N.m)	0.01-1.3	1.9-4	4-10	6-15

Technical Specifications

Input Power: Single Phase L1,L2/Three Phase L1,L2,L3 AC220V-15%~+10%
Temperature: Working: 0~40℃; Storing: -40~50℃
Humidity: Working: 40%~80% (no dew); Storing: below 93% (no dew)
IP Grade: IP20
Control Mode: PWM sine wave vector control
Regenerative Braking: Built-in brake resistor for power above 0.4KW; external resistor for large inertia applications
Feedback Mode: 2500PPR incremental encoder
Digital Input: Multiple control signals including servo on, clear, direction control, and emergency stop
Digital Output: Status indicators including servo ready, alarm, position completed, and speed arrival
Speed Frequency Response: >400Hz
Speed Regulation Ratio: 1:5000
