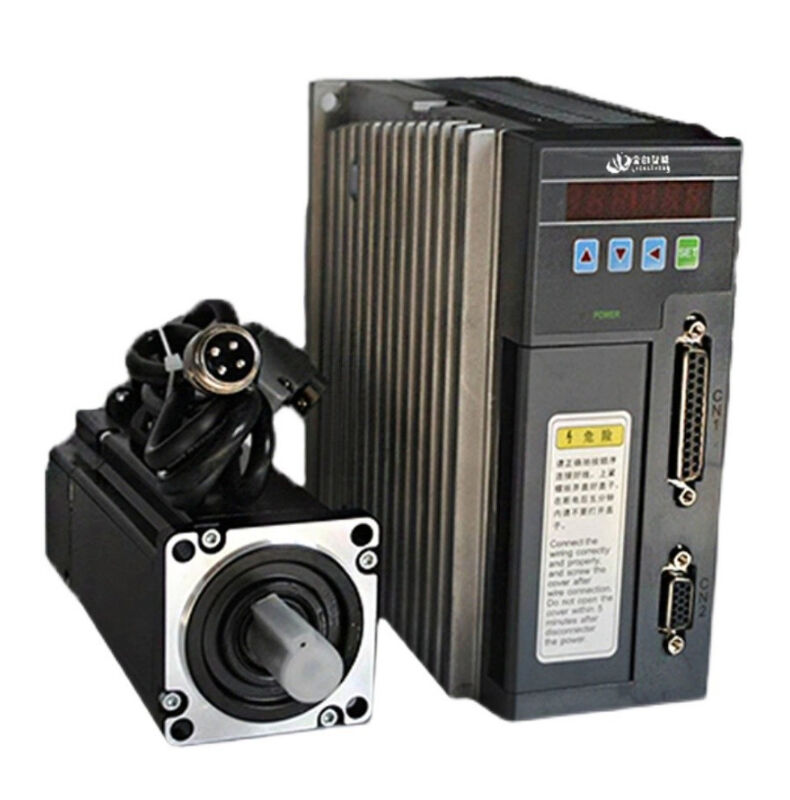

2.2kw 2500rpm Industrial Stepper Motor High Speed Response AC Servo System

Name: 2.2kw 2500rpm Industrial Stepper Motor High Speed Response AC Servo System
Brand: shenzhen laeg electric technologies co.,ltd.
SKU: 2.2kw
Price: 240 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	WEIDE
Certification:	CE
Model Number:	2.2kw
Document:	Weide Servo Catalogue-2504_...ed.pdf

Detail Information

Place of Origin:

CHINA

Brand Name:

WEIDE

Certification:

Model Number:

2.2kw

Document:

Weide Servo Catalogue-2504_...ed.pdf

Name:

Industrial Stepper Motor

WDM4:

High-Precision Universal Permanent Magnet 8-Pole AC Servo Motor

Feedback Units Available:

2500-line Incremental Encoder; 2500-line Line-saving Encoder; 17-bit Single-turn Absolute Photoelectric Encoder; 17-bit Multi-turn Absolute Photoelectric Encoder; 23-bit Single-turn Absolute Photoelectric Encoder; 23-bit Multi-turn Absolute Photoelectric E

Compatible Drivers:

German B, B2, B2D, B2E, EH Series Drivers

Power Range:

0.1~7.5 KW

Motor Frame Sizes:

60mm, 80mm, 90mm, 110mm, 130mm, 180mm (six Sizes Available)

Motor Components:

Support Brake, Oil Seal

Highlight:

High Light

Highlight:

2.2kw Industrial Stepper Motor

2500rpm Industrial Stepper Motor

High Speed Response AC Servo System

Trading Information

Minimum Order Quantity:

Price:

240 usd

Packaging Details:

10.00cm * 6.00cm * 12.00cm 3.5kg

Delivery Time:

15days

Payment Terms:

L/C,T/T

Supply Ability:

5000/years

Product Description

2.2kw 2500rpm High Speed Response AC Servo Motor with PWM Sine Wave Vector Control Servo Drive System

Model NO.: 2.2kW

Mathematical Model: Linear

Signal: Continuous

Function: Automatic Control, Protection

Certification: CCC, ISO: 9001, CE

Condition: New

Customized: Non-Customized

Material: Aluminum Alloy

Input Power: Single Phase L1, L2/Three Phase L1, L2, L3 AC220V

Temperature: Working: 0~40℃; Storing: -40~50℃

Product Overview

B Series Universal Servo Driver & Motor Features

Control Mode: Position Control
Adaptive feedback unit: 2500ppr incremental encoder; 2500ppr wire-saving encoder
Adopting the newest IPM (intelligent power module) with small size, high over capacity and reliability
Optimized braking unit, adapted to frequent start and stop situations
Easy to operate with trial operation, monitor and parameter setting via 4 keys
Adaptive power: 0.1~3.8KW

Model Specifications

Model No.	10B	15B	20B	30B
Output Power (KW)	0.05-0.4	0.6-1.0	1.0-1.3	1.5-3.8
Rated Torque (N.m)	0.01-1.3	1.9-4	4-10	6-15

Technical Specifications

Input Power: Single Phase L1,L2/Three Phase L1,L2,L3 AC220V-15%~+10%
Temperature: Working: 0~40℃; Storing: -40~50℃
Humidity: Working: 40%~80% (no dew); Storing: below 93% (no dew)
IP Grade: IP20
Control Mode: PWM sine wave vector control
Regenerative Braking: Built-in brake resistor for power above 0.4KW; external resistor option for large inertia applications
Feedback Mode: 2500PPR incremental encoder
Digital Input: Multiple control signals including SRV-ON, A-CLR, CCWL, CWL, TCCW, TCW, E-STOP
Digital Output: Servo Ready, Alarm, Position Completed, Speed Arrival, Electromagnetic Brake
Speed Frequency Response: >400Hz
Speed Regulation Ratio: 1:5000
