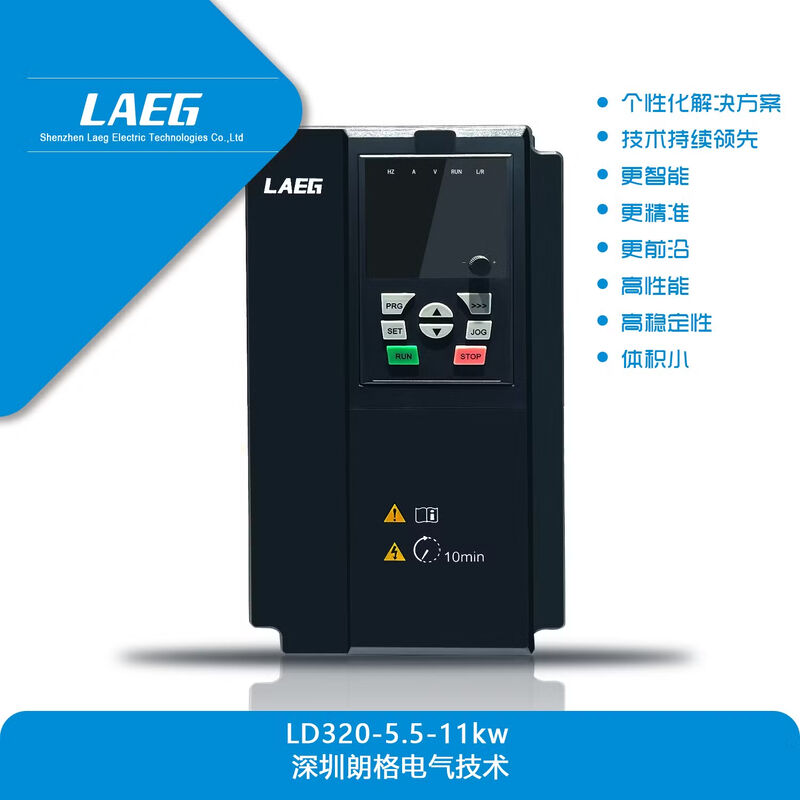

LD320 Highly Adaptive Inverter
Ideal for diverse industrial machine automation project requirements with advanced vector control technology.
Product Overview
| Model Number | LD320-110G-T4 | Working Principle | Vector Control Transducer |
|---|
| Switch Mode | PWM Control | Main Circuit Type | Current |
|---|
| Power Supply Voltage | Low Voltage Variable-Frequency Drive | Transformation Link | AC-DC-AC Variable-Frequency Drive |
|---|
| DC Power Nature | Current Variable-Frequency Drive | Function Type | Simple Type |
|---|
| Brand | Laeg | Protection Degree | IP55/65 |
|---|
| Voltage | 380V, or Customized | Frequency | 50Hz, 60Hz |
|---|
| Output Frequency | 0.01-400 Hz | Transport Package | Wooden Cases |
|---|
| Specification | 12*9*9 cm | Trademark | LAEG |
|---|
| Origin | Anhui China | HS Code | 8504400090 |
|---|
| Production Capacity | 5000/Months |
|---|
Company Profile
After more than 55 years of construction and development, Lu'an Jianghuai Motor has become the largest industrialized enterprise in the small, medium and large motor industry, with the most complete product series and the most comprehensive service network.
Main products include various high-efficiency and energy-saving low-voltage/high-voltage motors, DC motors, high-efficiency explosion-proof motors, special motors, permanent magnet motors, and other synchronous/asynchronous motors. Applications include power stations, metallurgy, steel, sugar making, coal mining, machinery, petroleum, chemical engineering, water conservancy, cement, papermaking, environmental protection, and pharmaceuticals.
ANHUI LAEG is the branch of Luan Jianghuai Motor Company, specializing in VFD production for over 20 years.
Inverter Advantages
- Compact Size: Advanced modular design saves over 30% volume compared to same power inverters, providing flexible installation space
- Better Excitation Performance: Automatically adjusts motor excitation current, improves motor efficiency, and saves energy during light loads
- Multiple Display Options: Digital or LCD operation panels for visual parameter observation and convenient maintenance
- Universal Drive Capability: Operates three-phase asynchronous motors, permanent magnet synchronous motors, and servo motors in sensorless state with optimal energy efficiency
- High Reliability: Long-life fans, capacitors, and thicker substrate coatings enhance reliability and durability; ROHS compliant and CE certified
Technical Specifications
| Model | AD10-4R0G-T4-B | |
|---|
| Adapt Motor Power | 4kW / 5HP |
|---|
| Rated Output Capacity | 5.9 kVA |
|---|
| Rated Output Current | 9A |
|---|
| Output Frequency | 0.01~400 Hz |
|---|
| Carrier Frequency Range | 1~16 kHz |
|---|
| Overload Capacity | 150% rated current for 60s, 200% rated current for 3s |
|---|
| Input Current | 10.5A |
|---|
| Input Voltage & Frequency | 3 phase 380V, 50~60Hz |
|---|
| Voltage Range | 315V~450V |
|---|
| Cooling System | Forced cold air |
|---|
| Brake Unit | Built-in |
|---|
Input Voltage Specifications
Input Voltage
Frequency | Model | Input Current (A) | Motor Power (KW) | Motor Horsepower (HP) | Rated Output Capacity (KVA) | Output Current(A) | Output Specifications |
|---|
| Output Frequency | Carrier Frequency |
|---|
1AC 220V
50/60Hz | AD10-0R7G-S2B | 8.2 | 0.75 | 1 | 1.5 | 4 | 0.1-400Hz | 1-16kHz |
| AD10-1R5G-S2B | 14 | 1.5 | 2 | 3 | 7 |
| AD10-2R2G-S2B | 23 | 2.2 | 3 | 4 | 9.6 |
3AC 380V
50/60Hz | AD10-0R7G-T4B | 3.4 | 0.75 | 1 | 1.5 | 2.1 | 0.1-400Hz | 1-16kHz |
| AD10-1R5G-T4B | 5 | 1.5 | 2 | 3 | 3.8 |
| AD10-2R2G-T4B | 5.8 | 2.2 | 3 | 4 | 5.1 |
| AD10-4R0G-T4B | 10.5 | 3.7 | 5 | 5.9 | 9 |
| AD10-5R5G-T4B | 14.6 | 5.5 | 7.5 | 8.9 | 13 |
| AD10-7R5G-T4B | 20.5 | 7.5 | 10 | 11 | 17 |
| AD10-011G-T4B | 26 | 11 | 15 | 17 | 25 |
Applications
Factory Environment
Our motor factory scale and product line, products details:
Certifications
We hold CE, ISO9001, CCC and other certifications:
Packaging
Frequently Asked Questions
Are you a factory or trading company?
LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We provide pre-sale service, in-sale service and after-sale service. Our principle is customer first, focusing on long-term cooperation.
What are your terms of delivery?
Generally we ship FOB, but we can offer CNF, CIF and DDP solutions based on your requirements.
What's the delivery time?
15 to 35 days after receiving your payment in advance.
