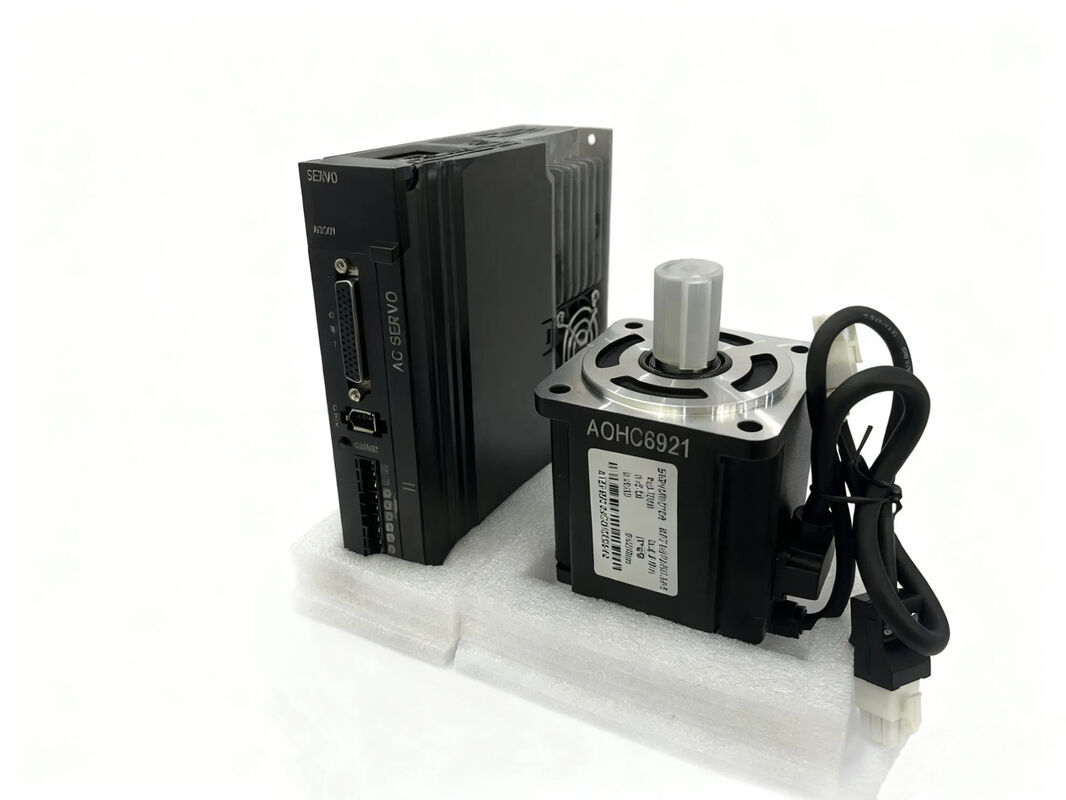

High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive
  • High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive
  • High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive
  • High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive
  • High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive
  • High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive
  • High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive
  • High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive

High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive

Product Details:
Place of Origin: CHINA
Brand Name: WEIDE
Certification: CE
Model Number: TSE-B-D
Document: Weide Servo Catalogue-2504_...ed.pdf
Detail Information
Place of Origin:
CHINA
Brand Name:
WEIDE
Certification:
CE
Model Number:
TSE-B-D
Document:
Weide Servo Catalogue-2504_...ed.pdf
Name:
Precision Servo Motors
WDM4:
High-Precision Universal Permanent Magnet 8-Pole AC Servo Motor
Feedback Units Available:
2500-line Incremental Encoder; 2500-line Line-saving Encoder; 17-bit Single-turn Absolute Photoelectric Encoder; 17-bit Multi-turn Absolute Photoelectric Encoder; 23-bit Single-turn Absolute Photoelectric Encoder; 23-bit Multi-turn Absolute Photoelectric E
Compatible Drivers:
German B, B2, B2D, B2E, EH Series Drivers
Power Range:
0.1~7.5 KW
Motor Frame Sizes:
60mm, 80mm, 90mm, 110mm, 130mm, 180mm (six Sizes Available)
Motor Components:
Support Brake, Oil Seal
Highlight:

High Light

Highlight:

High Speed Precision Servo Motors

,

Precision Servo Motors 2500PPR

,

2500PPR Servo Motor With Integrated Drive

Trading Information
Minimum Order Quantity:
1
Price:
80-110usd
Packaging Details:
10.00cm * 6.00cm * 12.00cm 3.5kg
Delivery Time:
15days
Payment Terms:
L/C,T/T
Supply Ability:
5000/years
Product Description
High Speed AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control for Position Control
Advanced automation solution featuring integrated servo drive and motor for precision industrial applications.
Product Specifications
Model Number: TSE-B-D Certification: CCC, ISO 9001, CE
Mathematical Model: Linear Condition: New
Signal Type: Continuous Material: Aluminum Alloy
Input Power: Single Phase L1, L2 / Three Phase L1, L2, L3 AC220V Operating Temperature: 0~40℃ (Working); -40~50℃ (Storing)
Control Type: PWM Sine Wave Vector Control Feedback Mode: 2500PPR Incremental Encoder
B Series Universal Servo Driver & Motor Features
High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive 0
  • Position Control Mode with adaptive 2500ppr incremental encoder
  • Advanced IPM (Intelligent Power Module) for compact size and high reliability
  • Optimized braking unit for frequent start-stop applications
  • User-friendly operation with 4-key interface for testing and parameter setting
  • Power range: 0.1~3.8KW
Model Specifications
High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive 1
Model No. 10B 15B 20B 30B
Output Power (KW) 0.05-0.4 0.6-1.0 1.0-1.3 1.5-3.8
Rated Torque (N.m) 0.01-1.3 1.9-4 4-10 6-15
Technical Performance
  • Speed Frequency Response: >400Hz
  • Speed Fluctuation Ratio: <±0.03% (load 0~100%)
  • Speed Regulation Ratio: 1:5000
  • IP Grade: IP20
  • Humidity: 40%~80% operating (no dew)
Driver Dimensions
High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive 2
Wiring Diagram (Position Control)
High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive 3
Certifications & Compliance
High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive 4 High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive 5
Industry Applications
High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive 6
Packaging & Delivery
High Speed Precision Servo Motors 2500PPR Servo Motor With Integrated Drive 7
