Home > Products >
AC Servo Motor
>

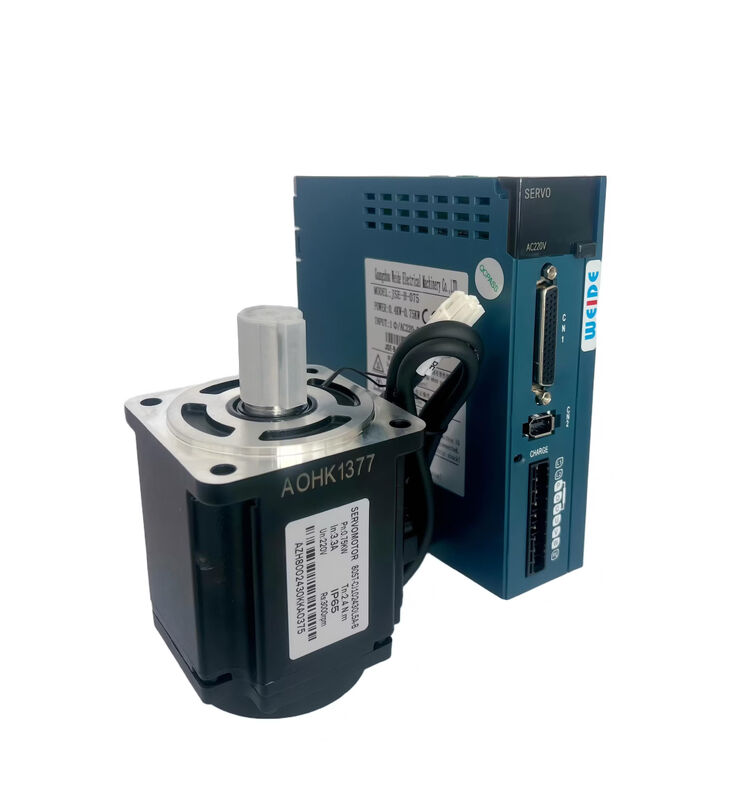

0.1KW - 7.5KW Closed Loop Servo Motor Industrial AC Servo System
  • 0.1KW - 7.5KW Closed Loop Servo Motor Industrial AC Servo System
  • 0.1KW - 7.5KW Closed Loop Servo Motor Industrial AC Servo System
  • 0.1KW - 7.5KW Closed Loop Servo Motor Industrial AC Servo System
  • 0.1KW - 7.5KW Closed Loop Servo Motor Industrial AC Servo System
  • 0.1KW - 7.5KW Closed Loop Servo Motor Industrial AC Servo System
  • 0.1KW - 7.5KW Closed Loop Servo Motor Industrial AC Servo System
  • 0.1KW - 7.5KW Closed Loop Servo Motor Industrial AC Servo System

0.1KW - 7.5KW Closed Loop Servo Motor Industrial AC Servo System

Product Details:
Place of Origin: CHINA
Brand Name: WEIDE
Certification: CE
Model Number: 1000W
Document: Weide Servo Catalogue-2504_...ed.pdf
Detail Information
Place of Origin:
CHINA
Brand Name:
WEIDE
Certification:
CE
Model Number:
1000W
Document:
Weide Servo Catalogue-2504_...ed.pdf
Name:
Closed Loop Servo Motor
WDM4:
High-Precision Universal Permanent Magnet 8-Pole AC Servo Motor
Feedback Units Available:
2500-line Incremental Encoder; 2500-line Line-saving Encoder; 17-bit Single-turn Absolute Photoelectric Encoder; 17-bit Multi-turn Absolute Photoelectric Encoder; 23-bit Single-turn Absolute Photoelectric Encoder; 23-bit Multi-turn Absolute Photoelectric E
Compatible Drivers:
German B, B2, B2D, B2E, EH Series Drivers
Power Range:
0.1~7.5 KW
Motor Frame Sizes:
60mm, 80mm, 90mm, 110mm, 130mm, 180mm (six Sizes Available)
Motor Components:
Support Brake, Oil Seal
Highlight:

High Light

Highlight:

0.1KW Closed Loop Servo Motor

,

7.5KW Closed Loop Servo Motor

,

Industrial AC Servo System

Trading Information
Minimum Order Quantity:
1
Price:
109 USD
Packaging Details:
10.00cm * 6.00cm * 12.00cm 3.5kg
Delivery Time:
15days
Payment Terms:
L/C,T/T
Supply Ability:
5000/years
Product Description
Closed Loop Control AC Servo System with PWM Sine Wave Vector Control and 2500PPR Incremental Encoder
Product Overview
Model NO.1000W Mathematical ModelLinear SignalContinuous FunctionAutomatic Control, Protection CertificationCCC, ISO: 9001, CE ConditionNew CustomizedNon-Customized MaterialAluminum Alloy Input PowerSingle Phase L1, L2/Three Phase L1, L2, L3 AC220V TemperatureWorking: 0~40℃; Storing: -40~50℃ Control TypePWM Sine Wave Vector Control Feedback Mode2500PPR Incremental Encoder Control ModePosition Digital InputSrv-on/a-Clr/Ccwl/Cwl/Tccw/Tcw/E-Stop/Electronic G Digital OutputServo Ready/Alarm/Position Completed/Speed Arrival Monitor FunctionSpeed, Current Position, Position Deviation, Motor Protection FunctionOverspeed, Overvoltage, Overcurrent, Overload, Abnormal Transport PackageCarton Specification355*305*310 mm TrademarkWeide OriginChina
B Series Universal Servo Driver & Motor
B Series Universal Servo Driver and Motor
  • Control Mode: Position Control
  • Adaptive feedback unit: 2500ppr incremental encoder; 2500ppr wire-saving encoder
  • Adopting the newest IPM (intelligent power module) with small size, high over capacity and reliability
  • Optimized braking unit, suitable for frequent start and stop situations
  • Easy to operate with trial operation, monitoring and parameter setting via 4 keys
  • Adaptive power: 0.1~3.8KW
Model Specifications
Servo System Model Naming Convention
Model No. 10B 15B 20B 30B Output Power (KW) 0.05-0.4 0.6-1.0 1.0-1.3 1.5-3.8 Rated Torque (N.m) 0.01-1.3 1.9-4 4-10 6-15
Input Power: Single Phase L1,L2/Three Phase L1,L2,L3 AC220V-15%~+10%
Temperature: Working: 0~40℃; Storing: -40~50℃
Humidity: Working: 40%~80% (no dew); Storing: below 93% (no dew)
IP Grade: IP20
Control Mode: PWM sine wave vector control
Regenerative Braking: For power above 0.4KW, use built-in brake resistor. When inertia is large, use external resistor via terminals B1,B2
Feedback Mode: 2500PPR incremental encoder
Control Mode: Position
Digital Input: Multiple control signals including SRV-ON, position deviation clear, and electronic gear functions
Digital Output: Servo status signals including ready, alarm, position completed, and speed arrival
Speed Frequency Response: >400Hz
Speed Fluctuation Ratio: <±0.03% (load 0~100%); <±0.02% (power supply -15~+10%)
Speed Regulation Ratio: 1:5000
Technical Drawings
Driver Dimension Drawing for 10B, 15B, 20B, 30B Models
Wiring Diagram (Position Control)
B2 Series Wiring Diagram for Position Control
Certifications & Compliance
Product Quality Certifications including CCC, ISO 9001, and CE Additional Industry Certifications and Compliance Standards
Industry Applications
Industrial Applications of AC Servo Systems in Manufacturing and Automation
Packaging & Delivery
Product Packaging and Shipping Information
