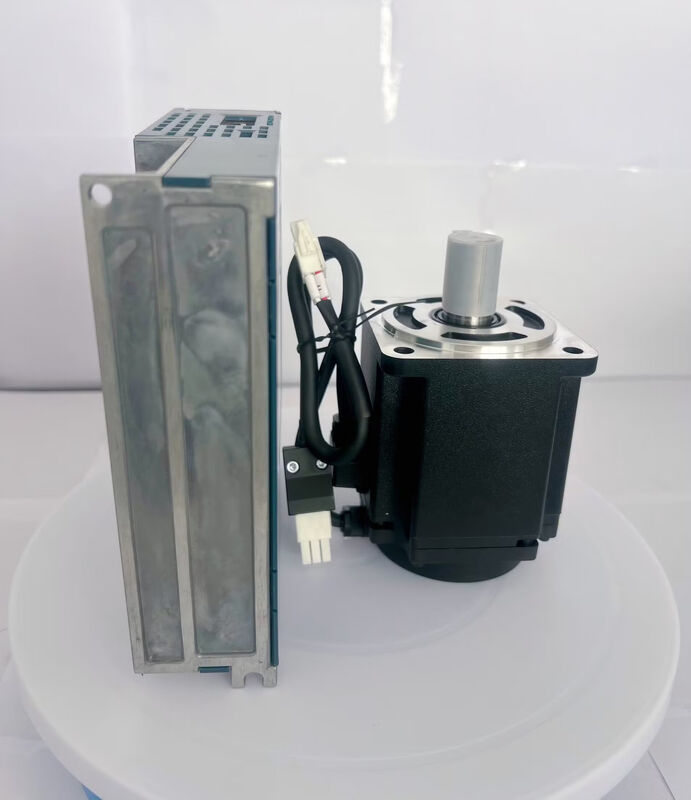

Intelligent AC Servo Motor 2500PPR High Torque Industrial Servo Motor

Name: Intelligent AC Servo Motor 2500PPR High Torque Industrial Servo Motor
Brand: shenzhen laeg electric technologies co.,ltd.
SKU: TSE-B-D
Price: 95.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	WEIDE
Certification:	CE
Model Number:	TSE-B-D
Document:	Weide Servo Catalogue-2504_...ed.pdf

Detail Information

Place of Origin:

CHINA

Brand Name:

WEIDE

Certification:

Model Number:

TSE-B-D

Document:

Weide Servo Catalogue-2504_...ed.pdf

Name:

AC Servo Motor

WDM4:

High-Precision Universal Permanent Magnet 8-Pole AC Servo Motor

Feedback Units Available:

2500-line Incremental Encoder; 2500-line Line-saving Encoder; 17-bit Single-turn Absolute Photoelectric Encoder; 17-bit Multi-turn Absolute Photoelectric Encoder; 23-bit Single-turn Absolute Photoelectric Encoder; 23-bit Multi-turn Absolute Photoelectric E

Compatible Drivers:

German B, B2, B2D, B2E, EH Series Drivers

Power Range:

0.1~7.5 KW

Motor Frame Sizes:

60mm, 80mm, 90mm, 110mm, 130mm, 180mm (six Sizes Available)

Motor Components:

Support Brake, Oil Seal

Highlight:

High Light

Highlight:

Intelligent AC Servo Motor

2500PPR High Torque Industrial Servo Motor

Intelligent High Torque Industrial Servo Motor

Trading Information

Minimum Order Quantity:

Price:

80-110 USD

Packaging Details:

10.00cm * 6.00cm * 12.00cm 3.5kg

Delivery Time:

15days

Payment Terms:

L/C,T/T

Supply Ability:

5000/years

Product Description

High Torque AC Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control

Product Specifications

Model Number	TSE-B-D
Mathematical Model	Linear
Signal Type	Continuous
Function	Automatic Control, Protection
Certifications	CCC, ISO 9001, CE
Condition	New
Material	Aluminum Alloy
Input Power	Single Phase L1, L2 / Three Phase L1, L2, L3 AC220V
Operating Temperature	0~40℃
Storage Temperature	-40~50℃

Product Overview

B Series Universal Servo Driver & Motor Features

Position Control Mode with adaptive feedback
2500ppr incremental encoder and wire-saving encoder compatibility
Advanced IPM (Intelligent Power Module) for compact size and high reliability
Optimized braking unit for frequent start-stop applications
User-friendly operation with trial operation, monitoring, and parameter setting via 4 keys
Power range: 0.1~3.8KW

Model Specifications

Model No.	10B	15B	20B	30B
Output Power (KW)	0.05-0.4	0.6-1.0	1.0-1.3	1.5-3.8
Rated Torque (N.m)	0.01-1.3	1.9-4	4-10	6-15

Technical Specifications

Input Power	Single Phase L1,L2 / Three Phase L1,L2,L3 AC220V ±15%
Operating Temperature	0~40℃
Storage Temperature	-40~50℃
Operating Humidity	40%~80% (no condensation)
Storage Humidity	Below 93% (no condensation)
IP Grade	IP20
Control Mode	PWM sine wave vector control
Speed Frequency Response	>400Hz
Speed Regulation Ratio	1:5000
