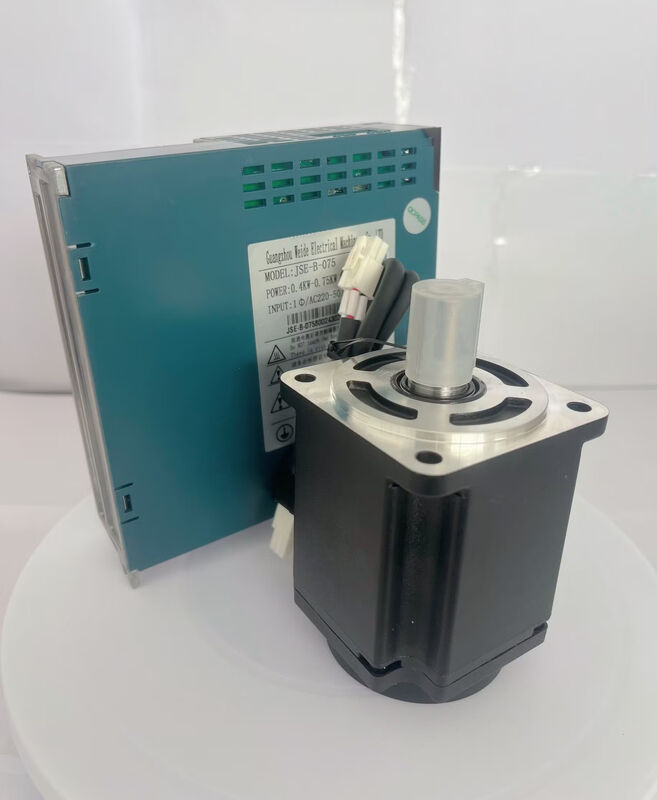

IP20 High Accuracy Servo Motor Aluminum Alloy Position Control Servo Motor

Name: IP20 High Accuracy Servo Motor Aluminum Alloy Position Control Servo Motor
Brand: shenzhen laeg electric technologies co.,ltd.
SKU: TSE-B-D
Price: 95.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	WEIDE
Certification:	CE
Model Number:	TSE-B-D
Document:	Weide Servo Catalogue-2504_...ed.pdf

Detail Information

Place of Origin:

CHINA

Brand Name:

WEIDE

Certification:

Model Number:

TSE-B-D

Document:

Weide Servo Catalogue-2504_...ed.pdf

Name:

High Accuracy Servo Motor

WDM4:

High-Precision Universal Permanent Magnet 8-Pole AC Servo Motor

Feedback Units Available:

2500-line Incremental Encoder; 2500-line Line-saving Encoder; 17-bit Single-turn Absolute Photoelectric Encoder; 17-bit Multi-turn Absolute Photoelectric Encoder; 23-bit Single-turn Absolute Photoelectric Encoder; 23-bit Multi-turn Absolute Photoelectric E

Compatible Drivers:

German B, B2, B2D, B2E, EH Series Drivers

Power Range:

0.1~7.5 KW

Motor Frame Sizes:

60mm, 80mm, 90mm, 110mm, 130mm, 180mm (six Sizes Available)

Motor Components:

Support Brake, Oil Seal

Highlight:

High Light

Highlight:

IP20 High Accuracy Servo Motor

Aluminum Alloy Position Control Servo Motor

Position Control Servo Motor IP20

Trading Information

Minimum Order Quantity:

Price:

80-110 USD

Packaging Details:

10.00cm * 6.00cm * 12.00cm 3.5kg

Delivery Time:

15days

Payment Terms:

L/C,T/T

Supply Ability:

5000/years

Product Description

High Accuracy AC Servo Motor with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Position Control

Product Specifications

Model Number	TSE-B-D	Mathematical Model	Linear
Signal Type	Continuous	Function	Automatic Control, Protection
Certifications	CCC, ISO: 9001, CE	Condition	New
Customization	Non-Customized	Material	Aluminum Alloy
Input Power	Single Phase L1, L2/Three Phase L1, L2, L3 AC220V
Temperature Range	Working: 0~40℃; Storing: -40~50℃

B Series Universal Servo Driver & Motor

Control Mode: Position Control
Adaptive feedback unit: 2500ppr incremental encoder; 2500ppr wire-saving encoder
Advanced IPM (Intelligent Power Module) with compact size, high over capacity and reliability
Optimized braking unit for frequent start and stop applications
User-friendly operation with trial operation, monitoring and parameter setting via 4-key interface
Adaptive power range: 0.1~3.8KW

Model Specifications

Model No.	10B	15B	20B	30B
Output Power (KW)	0.05-0.4	0.6-1.0	1.0-1.3	1.5-3.8
Rated Torque (N.m)	0.01-1.3	1.9-4	4-10	6-15

Technical Specifications

Input Power: Single Phase L1,L2/Three Phase L1,L2,L3 AC220V-15%~+10%
Temperature: Working: 0~40℃; Storing: -40~50℃
Humidity: Working: 40%~80% (no dew); Storing: below 93% (no dew)
IP Grade: IP20
Control Mode: PWM sine wave vector control
Regenerative Braking: Built-in brake resistor for power above 0.4KW
Feedback Mode: 2500PPR incremental encoder
Digital Input: Multiple control signals including servo on, clear, and direction commands
Speed Frequency Response: >400Hz
Speed Regulation Ratio: 1:5000
