1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit

Name: 1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
Brand: shenzhen laeg electric technologies co.,ltd.
SKU: 1.3kw
Price: 247 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	WEIDE
Certification:	CE
Model Number:	1.3kw
Document:	Weide Servo Catalogue-2504_...ed.pdf

Detail Information

Place of Origin:

CHINA

Brand Name:

WEIDE

Certification:

Model Number:

1.3kw

Document:

Weide Servo Catalogue-2504_...ed.pdf

Name:

Servo AC Motor

WDM4:

High-Precision Universal Permanent Magnet 8-Pole AC Servo Motor

Feedback Units Available:

2500-line Incremental Encoder; 2500-line Line-saving Encoder; 17-bit Single-turn Absolute Photoelectric Encoder; 17-bit Multi-turn Absolute Photoelectric Encoder; 23-bit Single-turn Absolute Photoelectric Encoder; 23-bit Multi-turn Absolute Photoelectric E

Compatible Drivers:

German B, B2, B2D, B2E, EH Series Drivers

Power Range:

0.1~7.5 KW

Motor Frame Sizes:

60mm, 80mm, 90mm, 110mm, 130mm, 180mm (six Sizes Available)

Motor Components:

Support Brake, Oil Seal

Highlight:

High Light

Highlight:

1.3kw Servo AC Motor

1500rpm Servo AC Motor

2500PPR Servo Motor Driver Kit

Trading Information

Minimum Order Quantity:

Price:

247 USD

Packaging Details:

10.00cm * 6.00cm * 12.00cm 3.5kg

Delivery Time:

15days

Payment Terms:

L/C,T/T

Supply Ability:

5000/years

Product Description

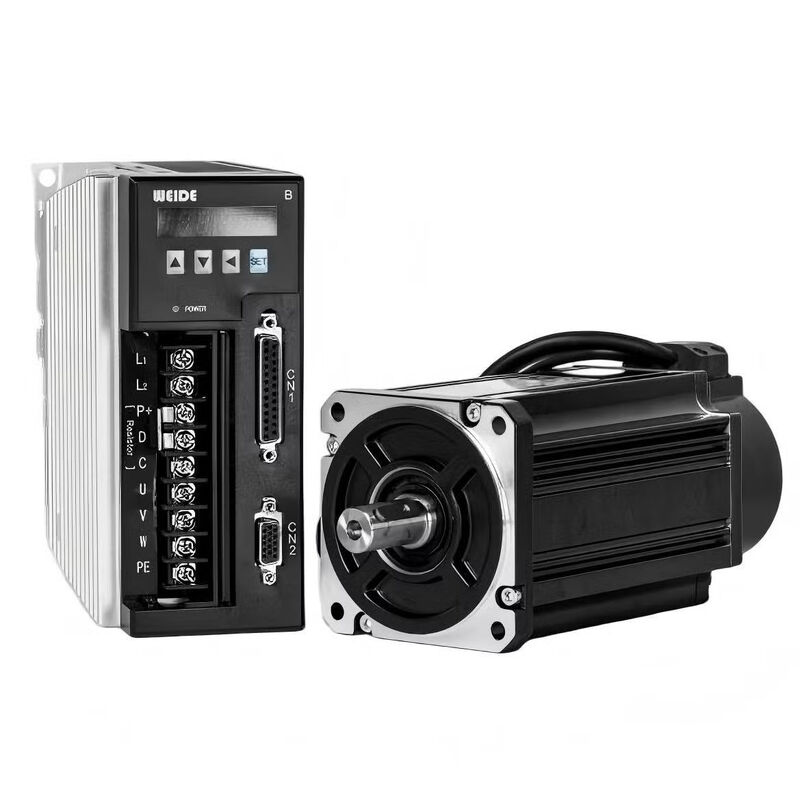

1.3kw 1500rpm AC Servo Motor with 2500PPR Incremental Encoder and B2 Series Universal Servo Drive

High-performance AC servo motor featuring 130mm flange, 1500rpm speed, 8.4Nm torque, and 220V operation with integrated brake system.

Product Specifications

Output Power

1.3kW

Rated Torque

8.4Nm

Rated Speed

1500rpm

Input Voltage

AC 220V ±15%

Flange Size

130mm

Encoder

2500PPR Incremental

B2 Series Universal Servo Driver & Motor

Multiple control modes: Position, Speed, Torque, and Internal speed control
Adaptive feedback units: 2500PPR incremental encoder, wire-saving encoder, and 17-bit absolute encoder
RS485 Modbus communication interface
Speed and torque output function (0~5V analog output)
Advanced IPM technology for compact size, strong overload capacity, and high reliability
Optimized brake unit for frequent start-stop applications
User-friendly operation with 4-key interface for trial operation, monitoring, and parameter setting
Power range: 0.1~5.5kW
Configurable encoder frequency division

Technical Specifications

Parameter	10B	15B	20B	30B
Output Power (kW)	0.05-0.4	0.6-1.0	1.0-1.3	1.5-3.8
Rated Torque (N.m)	0.01-1.3	1.9-4	4-10	6-15

Environmental Specifications:

Operating Temperature: 0~40℃
Storage Temperature: -40~50℃
Operating Humidity: 40%~80% (no condensation)
Storage Humidity: Below 93% (no condensation)
IP Rating: IP20

Performance Features

Speed Frequency Response: >400Hz
Speed Fluctuation Ratio: <±0.03% (load 0~100%)
Speed Regulation Ratio: 1:5000
Control Mode: PWM sine wave vector control
Regenerative Braking: Built-in brake resistor for power above 0.4kW
Protection Functions: Overspeed, overvoltage, overcurrent, overload, abnormal braking, encoder abnormality, position error
