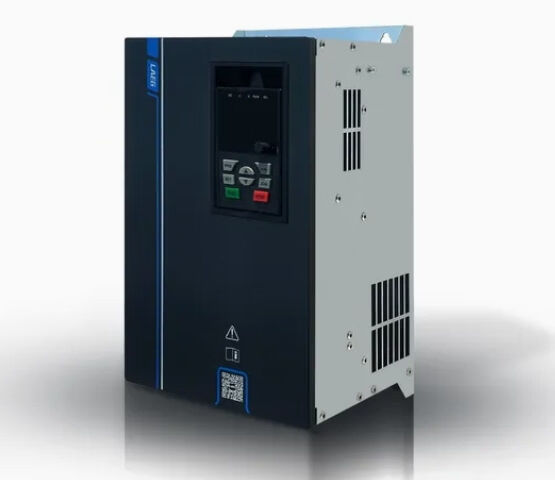

LD350 Vector Control Variable Frequency Drive with IP55/65 Protection and 0.01-400 Hz Output Frequency
Advanced vector control inverter designed for smooth acceleration and deceleration under challenging load conditions.
Product Specifications
| Specification | Details |
|---|
| Model Number | LD350-090G-T4 |
| Principle of Work | Vector Control Transducer |
| Switch Mode | PWM Control |
| Main Circuit Type | Current |
| Voltage of Power Supply | Low Voltage Variable-Frequency Drive |
| Link of Transformation | AC-DC-AC Variable-Frequency Drive |
| Nature of DC Power | Current Variable-Frequency Drive |
| Function | Simple Type |
| Brand | Laeg |
| Protection Degree | IP55/65 |
| Voltage | 380V, or Customized |
| Frequency | 50Hz, 60Hz |
| Output Frequency | 0.01-400 Hz |
| Transport Package | Wooden Cases |
| Specification | 12*9*9 cm |
| Trademark | LAEG |
| Origin | Anhui China |
| HS Code | 8504400090 |
| Production Capacity | 5000/Months |
Company Profile
With over 55 years of construction and development, Lu'an Jianghuai Motor has become the largest industrialized enterprise in the small, medium and large motor industry, offering the most complete product series and comprehensive service network. ANHUI LAEG is the branch of Luan Jianghuai motor company, specializing in VFD production for over 20 years.
Main products include various high-efficiency and energy-saving low-voltage/high-voltage motors, DC motors, high-efficiency explosion-proof motors, special motors, permanent magnet motors, and other synchronous/asynchronous motors. Applications include power stations, metallurgy, steel, sugar making, coal mining, machinery, petroleum, chemical engineering, water conservancy, cement, papermaking, environmental protection, and pharmaceuticals.
Inverter Advantages
- Compact Size: Advanced modular design saves over 30% volume compared to same power inverters, providing flexible installation options
- Better Excitation Performance: Automatically adjusts motor excitation current to improve efficiency and save energy during light loads
- Multiple Display Options: Available with digital or LCD operation panels for clear parameter observation and easy maintenance
- Universal Drive Capability: Operates three-phase asynchronous motors, permanent magnet synchronous motors, and servo motors in sensorless state with optimal energy efficiency
- High Reliability: Features long-life fans, capacitors, and enhanced substrate coatings for improved durability and resistance; meets ROHS requirements and CE certification
Detailed Product Specifications
| Parameter | Specification |
|---|
| Model | AD10-4R0G-T4-B |
| Adapt Motor Power | 4 kW / 5 HP |
| Rated Output Capacity | 5.9 kVA |
| Rated Output Current | 9 A |
| Output Frequency | 0.01-400 Hz |
| Carrier Frequency Range | 1-16 kHz |
| Overload Capacity | 150% rated current for 60 seconds, 200% rated current for 3 seconds |
| Input Current | 10.5 A |
| Input Voltage and Frequency | 3 phase 380V, 50-60Hz |
| Voltage Range | 315V-450V |
| Cooling System | Forced cold air |
| Brake Unit | In-build |
Technical Specifications Table
| Input Voltage Frequency | Model | Input Current (A) | Motor Power (kW) | Motor Horsepower (HP) | Rated Output Capacity (KVA) | Output Current (A) | Output Frequency | Carrier Frequency |
|---|
| 1AC 220V 50/60Hz | AD10-0R7G-S2B | 8.2 | 0.75 | 1 | 1.5 | 4 | 0.1-400Hz | 1-16kHz |
| AD10-1R5G-S2B | 14 | 1.5 | 2 | 3 | 7 |
| AD10-2R2G-S2B | 23 | 2.2 | 3 | 4 | 9.6 |
| 3AC 380V 50/60Hz | AD10-0R7G-T4B | 3.4 | 0.75 | 1 | 1.5 | 2.1 | 0.1-400Hz | 1-16kHz |
| AD10-1R5G-T4B | 5 | 1.5 | 2 | 3 | 3.8 |
| AD10-2R2G-T4B | 5.8 | 2.2 | 3 | 4 | 5.1 |
| AD10-4R0G-T4B | 10.5 | 3.7 | 5 | 5.9 | 9 |
| AD10-5R5G-T4B | 14.6 | 5.5 | 7.5 | 8.9 | 13 |
| AD10-7R5G-T4B | 20.5 | 7.5 | 10 | 11 | 17 |
| AD10-011G-T4B | 26 | 11 | 15 | 17 | 25 |
Applications
Factory Environment
Our motor factory scale and product line, products details:
Certifications
We have CE, ISO9001, CCC and other certifications:
Packaging
Frequently Asked Questions
Q: Are you a factory or trading company?
A: LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
Q: What about the warranty?
A: We offer 12 month warranty period as the quality guarantee.
Q: Can you do OEM?
A: Yes, we offer OEM services.
Q: How about your service?
A: We provide comprehensive pre-sale, in-sale, and after-sale services. Our principle is customer first, focusing on long-term cooperation.
Q: What are your terms of delivery?
A: Generally we ship FOB, but we can also arrange CNF, CIF and DDP based on your requirements.
Q: What's the delivery time?
A: 15 to 35 days after receiving your payment in advance.
