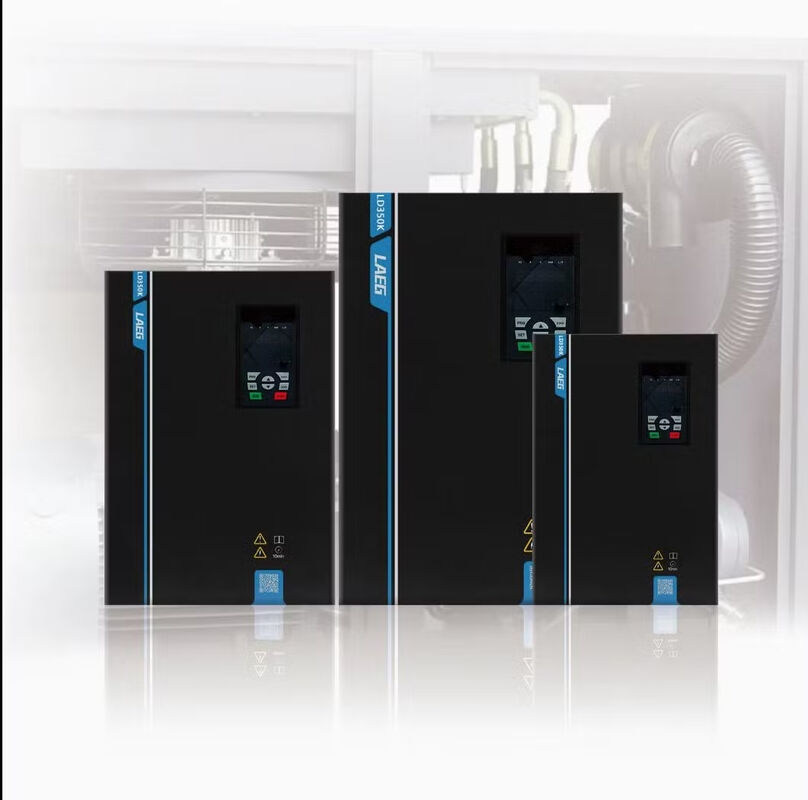

Ld350 Industrial Inverter with Improved Protective Circuits Ensuring Safe Continuous Equipment Running
Product Overview
The LD350 industrial inverter features advanced protective circuits that ensure safe, continuous equipment operation. This vector control transducer utilizes PWM control technology for reliable performance in demanding industrial applications.
Technical Specifications
| Model Number | LD350-132G-T4 |
| Working Principle | Vector Control Transducer |
| Switch Mode | PWM Control |
| Main Circuit Type | Current |
| Power Supply Voltage | Low Voltage Variable-Frequency Drive |
| Transformation Link | AC-DC-AC Variable-Frequency Drive |
| DC Power Nature | Current Variable-Frequency Drive |
| Function | Simple Type |
| Brand | Laeg |
| Protection Degree | IP55/65 |
| Voltage | 380V, or Customized |
| Frequency | 50Hz, 60Hz |
| Output Frequency | 0.01-400 Hz |
| Transport Package | Wooden Cases |
| Specification | 12*9*9 cm |
| Trademark | LAEG |
| Origin | Anhui, China |
| HS Code | 8504400090 |
| Production Capacity | 5000/Month |
Manufacturer Profile
With over 55 years of development, Lu'an Jianghuai Motor has become a leading enterprise in the motor industry, offering the most complete product series and comprehensive service network. The company specializes in high-efficiency, energy-saving low-voltage/high-voltage motors, DC motors, explosion-proof motors, special motors, permanent magnet motors, and synchronous/asynchronous motors. ANHUI LAEG, a branch of Lu'an Jianghuai Motor, has over 20 years of experience in VFD production.
Product Advantages
- Compact Design: Advanced modular design reduces volume by over 30% compared to same-power inverters, providing flexible installation options
- Enhanced Excitation Performance: Automatically adjusts motor excitation current to improve efficiency and save energy during light loads
- Multiple Display Options: Choose between digital or LCD operation panels for clear parameter monitoring and easy maintenance
- Universal Drive Compatibility: Operates three-phase asynchronous motors, permanent magnet synchronous motors, and servo motors in sensorless mode for optimal energy savings
- High Reliability: Utilizes long-life fans, capacitors, and enhanced substrate coatings for improved durability and resistance, meeting ROHS environmental standards and CE certification
Detailed Specifications - Model AD10-4R0G-T4-B
| Adapt Motor Power | 4 kW / 5 HP |
| Rated Output Capacity | 5.9 kVA |
| Rated Output Current | 9 A |
| Output Frequency | 0.01-400 Hz |
| Carrier Frequency Range | 1-16 kHz |
| Overload Capacity | 150% rated current for 60s, 200% rated current for 3s |
| Input Current | 10.5 A |
| Input Voltage & Frequency | 3 phase 380V, 50-60Hz |
| Voltage Range | 315V-450V |
| Cooling System | Forced Cold Air |
| Brake Unit | Built-in |
Complete Model Specifications
| Input Voltage Frequency | Model | Input Current (A) | Motor Power (kW) | Motor Horsepower (HP) | Rated Output Capacity (KVA) | Output Current (A) | Output Frequency | Carrier Frequency |
|---|
| 1AC 220V 50/60Hz | AD10-0R7G-S2B | 8.2 | 0.75 | 1 | 1.5 | 4 | 0.1-400Hz | 1-16kHz |
| AD10-1R5G-S2B | 14 | 1.5 | 2 | 3 | 7 |
| AD10-2R2G-S2B | 23 | 2.2 | 3 | 4 | 9.6 |
| 3AC 380V 50/60Hz | AD10-0R7G-T4B | 3.4 | 0.75 | 1 | 1.5 | 2.1 | 0.1-400Hz | 1-16kHz |
| AD10-1R5G-T4B | 5 | 1.5 | 2 | 3 | 3.8 |
| AD10-2R2G-T4B | 5.8 | 2.2 | 3 | 4 | 5.1 |
| AD10-4R0G-T4B | 10.5 | 3.7 | 5 | 5.9 | 9 |
| AD10-5R5G-T4B | 14.6 | 5.5 | 7.5 | 8.9 | 13 |
| AD10-7R5G-T4B | 20.5 | 7.5 | 10 | 11 | 17 |
| AD10-011G-T4B | 26 | 11 | 15 | 17 | 25 |
Application Areas
Our inverters are widely used in power stations, metallurgy, steel production, sugar manufacturing, coal mining, machinery, petroleum, chemical processing, water conservancy, cement production, paper manufacturing, environmental protection, and pharmaceutical industries.
Manufacturing Facility
Quality Certifications
Our products meet international standards including CE, ISO9001, CCC and other certifications.
Packaging
Frequently Asked Questions
Are you a factory or trading company?
LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We provide comprehensive pre-sale, in-sale, and after-sale service. Our principle is customer first, focusing on long-term cooperation.
What are your terms of delivery?
Generally we ship FOB, but we can also arrange CNF, CIF and DDP based on your requirements.
What's the delivery time?
15 to 35 days after receiving your payment in advance.
