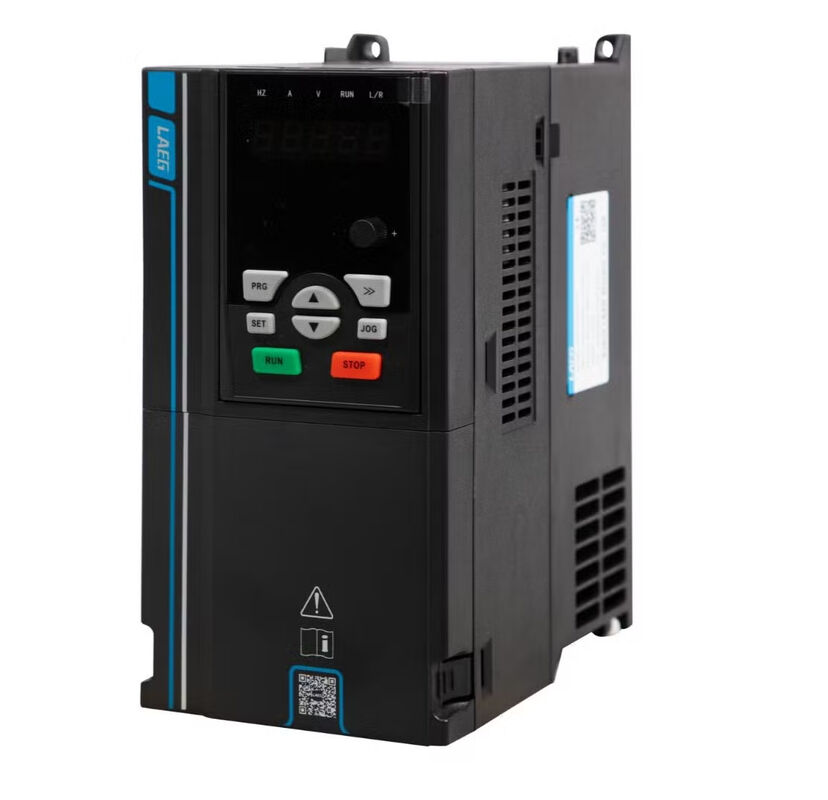

0.75kw~110kw High Performance Advanced Industrial AC Variable Frequency Drive
Power Range: 0.75kW to 110kW
Product Overview
Model: AD10-0R7G-S2
Working Principle Vector Control Transducer Switch Mode PWM Control Main Circuit Type Current Power Supply Voltage Low Voltage Variable-Frequency Drive Transformation Link AC-DC-AC Variable-Frequency Drive DC Power Nature Current Variable-Frequency Drive Function Simple Type Brand Laeg Protection Degree IP55/65 Voltage 380V, or Customized Frequency 50Hz, 60Hz Output Frequency 0.01-400 Hz Transport Package Wooden Cases Specification 12*9*9 cm Trademark LAEG Origin Anhui China HS Code 8504400090 Production Capacity 5000/Months
Company Profile
With over 55 years of construction and development, Lu'an Jianghuai Motor has become the largest industrialized enterprise in the small, medium and large motor industry, offering the most complete product series and comprehensive service network. Our product portfolio includes various high-efficiency and energy-saving low-voltage/high-voltage motors, DC motors, high-efficiency explosion-proof motors, special motors, permanent magnet motors, and other synchronous/asynchronous motors. ANHUI LAEG is a branch of Luan Jianghuai Motor Company, specializing in VFD production for over 20 years.
Inverter Advantages
- Compact Size: Advanced modular design saves over 30% volume compared to same-power inverters, providing flexible installation options
- Enhanced Excitation Performance: Automatically adjusts motor excitation current to improve efficiency and save energy during light loads
- Multiple Display Options: Choose between dual selection or LCD operation panels for better parameter visibility and maintenance convenience
- Universal Drive Compatibility: Operates three-phase asynchronous motors, permanent magnet synchronous motors, and servo motors in sensorless state with optimal energy efficiency
- High Reliability: Features long-life fans, capacitors, and thicker substrate coatings for enhanced durability and resistance, meeting ROHS requirements and CE certification
Product Specifications
Model: AD10-4R0G-T4-B
Adapt Motor Power 4kW / 5HP Rated Output Capacity 5.9 kVA Rated Output Current 9A Output Frequency 0.01-400 Hz Carrier Frequency Range 1-16 kHz Overload Capacity 150% rated current for 60 seconds, 200% rated current for 3 seconds Input Current 10.5A Input Voltage & Frequency 3 phase 380V, 50-60Hz Voltage Range 315V-450V Cooling System Forced Cold Air Brake Unit Built-in
Technical Specifications Table
Input Voltage Frequency Model Input Current (A) Motor Power (kW) Motor Horsepower (HP) Rated Output Capacity (kVA) Output Current (A) Output Frequency Carrier Frequency 1AC 220V 50/60Hz AD10-0R7G-S2B 8.2 0.75 1 1.5 4 0.1-400Hz 1-16kHz AD10-1R5G-S2B 14 1.5 2 3 7 AD10-2R2G-S2B 23 2.2 3 4 9.6 3AC 380V 50/60Hz AD10-0R7G-T4B 3.4 0.75 1 1.5 2.1 0.1-400Hz 1-16kHz AD10-1R5G-T4B 5 1.5 2 3 3.8 AD10-2R2G-T4B 5.8 2.2 3 4 5.1 AD10-4R0G-T4B 10.5 3.7 5 5.9 9 AD10-5R5G-T4B 14.6 5.5 7.5 8.9 13 AD10-7R5G-T4B 20.5 7.5 10 11 17 AD10-011G-T4B 26 11 15 17 25
Applications
Factory Environment
Our motor factory scale and product line, products details
Certifications
We hold CE, ISO9001, CCC and other certifications
Packaging
Frequently Asked Questions
Are you a factory or trading company?
LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We provide comprehensive pre-sale, in-sale, and after-sale services. Our principle is customer first, focusing on long-term cooperation.
What are your terms of delivery?
Generally we ship FOB, but we can also accommodate CNF, CIF and DDP terms based on your requirements.
What's the delivery time?
15 to 35 days after receiving your payment in advance.
