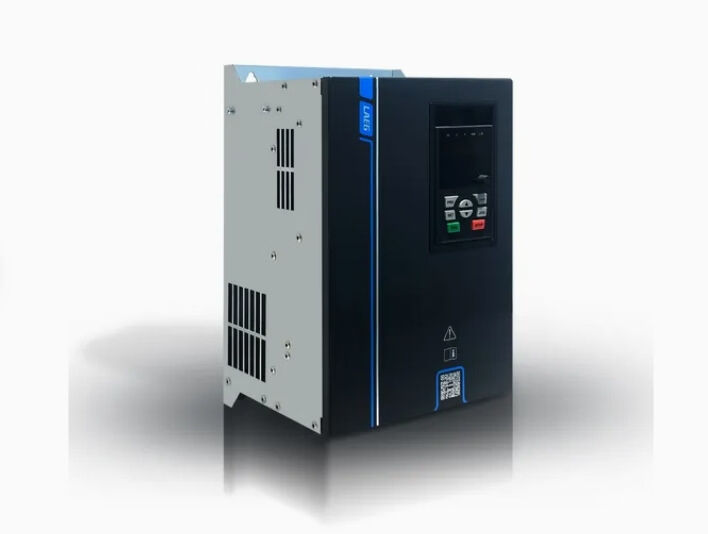

Ld320 Digital Motor Controller Enhancing Startup Smoothness and Extending Mechanical Component Lifespan
Enhancing startup smoothness and extending mechanical component lifespan through advanced vector control technology.
Product Specifications
| Model Number |
LD320-132G-T4 |
| Working Principle |
Vector Control Transducer |
| Switch Mode |
PWM Control |
| Main Circuit Type |
Current |
| Power Supply Voltage |
Low Voltage Variable-Frequency Drive |
| Transformation Link |
AC-DC-AC Variable-Frequency Drive |
| DC Power Nature |
Current Variable-Frequency Drive |
| Function |
Simple Type |
| Brand |
Laeg |
| Protection Degree |
IP55/65 |
| Voltage |
380V, or Customized |
| Frequency |
50Hz, 60Hz |
| Output Frequency |
0.01-400 Hz |
| Transport Package |
Wooden Cases |
| Specification |
12*9*9 cm |
| Trademark |
LAEG |
| Origin |
Anhui China |
| HS Code |
8504400090 |
| Production Capacity |
5000/Months |
Company Profile
After more than 55 years of construction and development, Lu'an Jianghuai Motor has become the largest industrialized enterprise in the small, medium and large motor industry, with the most complete product series and service network. Our products include various high-efficiency and energy-saving low-voltage/high-voltage motors, DC motors, high-efficiency explosion-proof motors, special motors, permanent magnet motors, and other synchronous/asynchronous motors. Applications include power stations, metallurgy, steel, sugar making, coal mining, machinery, petroleum, chemical engineering, water conservancy, cement, papermaking, environmental protection, and pharmaceuticals. ANHUI LAEG is the branch of Luan Jianghuai motor company, specializing in VFD production for over 20 years.
Inverter Advantages
- Compact Size: Advanced modular design saves over 30% volume compared to same power inverters
- Better Excitation Performance: Automatically adjusts motor excitation current to improve efficiency and save energy
- Multiple Display Options: Choose between dual selection or LCD operation panels for enhanced parameter visibility
- Universal Drive Compatibility: Operates three-phase asynchronous motors, permanent magnet synchronous motors, and servo motors
- High Reliability: Long-life components and enhanced substrate coatings ensure durability and ROHS compliance with CE certification
Detailed Product Specifications
| Model |
AD10-4R0G-T4-B |
| Adapt Motor Power |
4kW / 5HP |
| Rated Output Capacity |
5.9 KVA |
| Rated Output Current |
9A |
| Output Frequency |
0.01-400 Hz |
| Carrier Frequency Range |
1-16 KHz |
| Overload Capacity |
150% rated current for 60s, 200% rated current for 3s |
| Input Current |
10.5A |
| Input Voltage & Frequency |
3 phase 380V, 50-60Hz |
| Voltage Range |
315V-450V |
| Cooling System |
Forced cold air |
| Brake Unit |
In-build |
Technical Specifications Table
| Input Voltage Frequency |
Model |
Input Current (A) |
Motor Power (KW) |
Motor Horsepower (HP) |
Rated Output Capacity (KVA) |
Output Current (A) |
Output Frequency |
Carrier Frequency |
| 1AC 220V 50/60Hz |
AD10-0R7G-S2B |
8.2 |
0.75 |
1 |
1.5 |
4 |
0.1-400Hz |
1-16KHz |
| AD10-1R5G-S2B |
14 |
1.5 |
2 |
3 |
7 |
| AD10-2R2G-S2B |
23 |
2.2 |
3 |
4 |
9.6 |
| 3AC 380V 50/60Hz |
AD10-0R7G-T4B |
3.4 |
0.75 |
1 |
1.5 |
2.1 |
0.1-400Hz |
1-16KHz |
| AD10-1R5G-T4B |
5 |
1.5 |
2 |
3 |
3.8 |
| AD10-2R2G-T4B |
5.8 |
2.2 |
3 |
4 |
5.1 |
| AD10-4R0G-T4B |
10.5 |
3.7 |
5 |
5.9 |
9 |
| AD10-5R5G-T4B |
14.6 |
5.5 |
7.5 |
8.9 |
13 |
| AD10-7R5G-T4B |
20.5 |
7.5 |
10 |
11 |
17 |
| AD10-011G-T4B |
26 |
11 |
15 |
17 |
25 |
Inverter Applications
Factory Environment
Our motor factory scale and product line, products details
Certifications
We have CE, ISO9001, CCC and other certificates
Packaging
Frequently Asked Questions
Q: Are you a factory or trading company?
A: LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
Q: What about the warranty?
A: We offer 12 month warranty period as the quality guarantee.
Q: Can you do OEM?
A: Yes, we offer OEM services.
Q: How about your service?
A: We provide pre-sale, in-sale, and after-sale services. Our principle is customer first, focusing on long-term cooperation.
Q: What are your terms of delivery?
A: Generally we ship FOB, but we can also arrange CNF, CIF and DDP based on your requirements.
Q: What's the delivery time?
A: 15 to 35 days after receiving your payment in advance.
