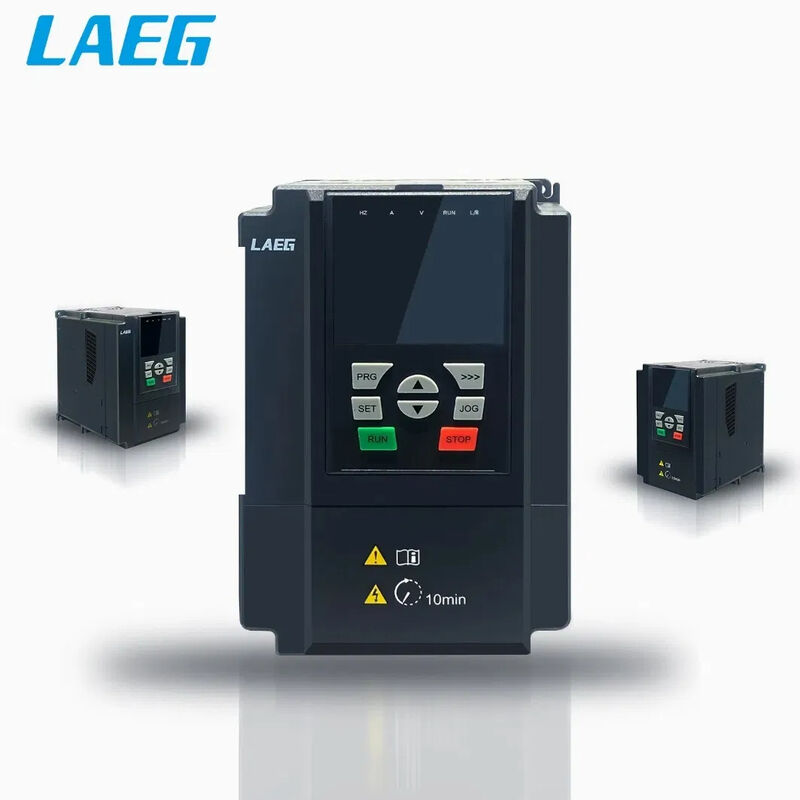

Ld320 Intelligent Frequency Converter Supporting Energy Saving Across Multiple Industrial Systems
Advanced energy-saving frequency converter supporting multiple industrial systems with intelligent vector control technology.
Product Specifications
| Model Number |
LD320-7R5G-T4B |
| Working Principle |
Vector Control Transducer |
| Switch Mode |
PWM Control |
| Main Circuit Type |
Current |
| Power Supply Voltage |
Low Voltage Variable-Frequency Drive |
| Transformation Link |
AC-DC-AC Variable-Frequency Drive |
| DC Power Nature |
Current Variable-Frequency Drive |
| Function Type |
Simple Type |
| Brand |
Laeg |
| Protection Degree |
IP55/65 |
| Voltage |
380V, or Customized |
| Frequency |
50Hz, 60Hz |
| Output Frequency |
0.01-400 Hz |
| Transport Package |
Wooden Cases |
| Specification |
12*9*9 cm |
| Trademark |
LAEG |
| Origin |
Anhui, China |
| HS Code |
8504400090 |
| Production Capacity |
5000/Month |
Company Profile
With over 55 years of construction and development, Lu'an Jianghuai Motor has become the largest industrialized enterprise in the small, medium and large motor industry, offering the most complete product series and comprehensive service network. ANHUI LAEG is the branch of Luan Jianghuai Motor Company, specializing in VFD production for over 20 years.
Product Advantages
- Compact Size: Advanced modular design saves over 30% volume compared to same-power inverters
- Better Excitation Performance: Automatically adjusts motor excitation current for improved efficiency and energy savings
- Multiple Display Options: Dual selection or LCD operation panels for easy parameter monitoring and adjustment
- Universal Drive Capability: Supports three-phase asynchronous motors, permanent magnet synchronous motors, and servo motors
- High Reliability: Long-life components and enhanced substrate coatings ensure durability and ROHS compliance with CE certification
Technical Specifications
| Model |
AD10-4R0G-T4-B |
| Motor Power (kW/HP) |
4/5 |
| Rated Output Capacity (KVA) |
5.9 |
| Rated Output Current (A) |
9 |
| Output Frequency (Hz) |
0.01~400 |
| Carrier Frequency Range (KHz) |
1~16 |
| Overload Capacity |
150% rated current for 60s, 200% rated current for 3s |
| Input Current (A) |
10.5 |
| Input Voltage & Frequency |
3 phase 380V, 50~60Hz |
| Voltage Range |
315V~450V |
| Cooling System |
Forced cold air |
| Brake Unit |
Built-in |
Model Comparison Table
| Input Voltage/Frequency |
Model |
Input Current (A) |
Motor Power (KW) |
Motor Horsepower (HP) |
Rated Output Capacity (KVA) |
Output Current (A) |
Output Frequency |
Carrier Frequency |
| 1AC 220V 50/60Hz |
AD10-0R7G-S2B |
8.2 |
0.75 |
1 |
1.5 |
4 |
0.1-400Hz |
1-16KHz |
| AD10-1R5G-S2B |
14 |
1.5 |
2 |
3 |
7 |
| AD10-2R2G-S2B |
23 |
2.2 |
3 |
4 |
9.6 |
| 3AC 380V 50/60Hz |
AD10-0R7G-T4B |
3.4 |
0.75 |
1 |
1.5 |
2.1 |
0.1-400Hz |
1-16KHz |
| AD10-1R5G-T4B |
5 |
1.5 |
2 |
3 |
3.8 |
| AD10-2R2G-T4B |
5.8 |
2.2 |
3 |
4 |
5.1 |
| AD10-4R0G-T4B |
10.5 |
3.7 |
5 |
5.9 |
9 |
| AD10-5R5G-T4B |
14.6 |
5.5 |
7.5 |
8.9 |
13 |
| AD10-7R5G-T4B |
20.5 |
7.5 |
10 |
11 |
17 |
| AD10-011G-T4B |
26 |
11 |
15 |
17 |
25 |
Applications
Factory Environment
Our motor factory scale and product line, products details
Certifications
We have CE, ISO9001, CCC and other certificates
Packaging
Frequently Asked Questions
Q: Are you a factory or trading company?
A: LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
Q: What about the warranty?
A: We offer 12 month warranty period as the quality guarantee.
Q: Can you do OEM?
A: Yes, we offer OEM services.
Q: How about your service?
A: We provide comprehensive pre-sale, in-sale, and after-sale services. Our principle is customer first, focusing on long-term cooperation.
Q: What are your terms of delivery?
A: Generally we ship FOB, but we can also arrange CNF, CIF and DDP based on your requirements.
Q: What's the delivery time?
A: 15 to 35 days after receiving your payment in advance.
