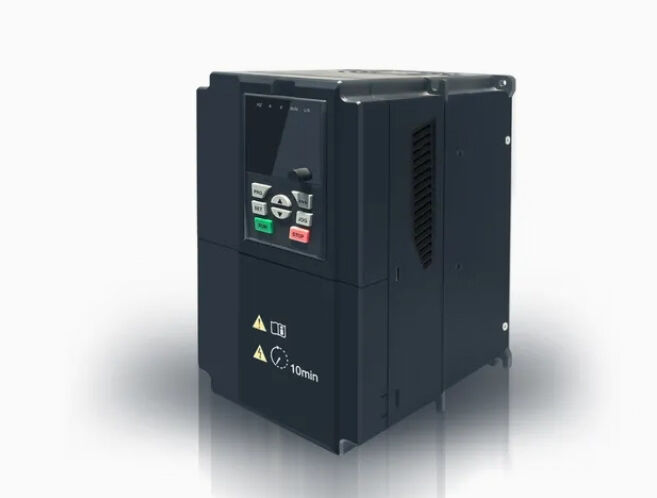

Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load
Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load
  • Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load
  • Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load
  • Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load
  • Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load
  • Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load
  • Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load

Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load

Product Details:
Place of Origin: CHINA
Brand Name: LAEG
Certification: CE
Model Number: LD320-250G-T4
Document: AD10 Series Economical Driv...er.pdf
Detail Information
Place of Origin:
CHINA
Brand Name:
LAEG
Certification:
CE
Model Number:
LD320-250G-T4
Document:
AD10 Series Economical Driv...er.pdf
Drive Type:
Frequency Inverter
Insulation Voltage:
800V/1600V
Humidityrange:
5% To 95% Non-condensing
Model No:
N310-20P5
Output Voltage:
Customizable
Output Phase:
3phase
Energy Function:
Four-quadrant Energy Regeneration
Output Power:
0.75KW-55KW
Packaging Specifications:
50ml~1000ml
Input Voltage:
220V To 380V
Shipping Method:
DHL/FedEx/EMS/TNT
Power Range:
2.2KW-5000KW
Motor Compatibility:
PMSM Motor
Voltage:
220V,380V,400V,415V,440V,460V,480V
Frequency Resolution:
0.01Hz
Accuracy:
0.5% For VF Application
Protectionfeatures:
Overvoltage, Undervoltage, Overload, Short Circuit, Phase Loss
Displaytype:
LCD Or LED Display
Size:
167.5*185.8*80mm
Inputfrequency:
50/60 Hz
Response Speed:
Rapid
Application:
Pumps,fans,compresors,conveyors,Crane
Energy Regeneration:
Four-quadrant
Powerrating:
0.5 KW To 500 KW
Controlmethod:
V/f Control, Vector Control, Sensorless Vector Control
Torque Control:
Direct
Colour:
Grey
Name:
Variable Frequency Drive
Highlight:

High Light

Highlight:

high-stability variable frequency drive

,

inverter with accurate speed control

,

variable frequency drive for heavy load

Trading Information
Minimum Order Quantity:
1
Price:
3000 USD
Packaging Details:
12*9*9 cm
Delivery Time:
15days
Payment Terms:
L/C,T/T
Supply Ability:
5000/Months
Product Description
LD320 High-Stability Inverter
Advanced vector control transducer ensuring precise speed control under demanding mechanical loads
Product Specifications
Model NumberLD320-250G-T4
Working PrincipleVector Control Transducer
Switch ModePWM Control
Main Circuit TypeCurrent
Power Supply VoltageLow Voltage Variable-Frequency Drive
Transformation LinkAC-DC-AC Variable-Frequency Drive
DC Power NatureCurrent Variable-Frequency Drive
Function TypeSimple Type
BrandLaeg
Protection DegreeIP55/65
Voltage380V, or Customized
Frequency50Hz, 60Hz
Output Frequency0.01-400 Hz
Transport PackageWooden Cases
Specification12*9*9 cm
TrademarkLAEG
OriginAnhui China
HS Code8504400090
Production Capacity5000/Months
Company Profile
Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load 0
With over 55 years of development, Lu'an Jianghuai Motor has become a leading enterprise in the motor industry with comprehensive product series and service network. Specializing in high-efficiency low-voltage/high-voltage motors, DC motors, explosion-proof motors, special motors, and permanent magnet motors. Applications include power stations, metallurgy, steel, mining, petroleum, chemical, and various industrial sectors. ANHUI LAEG, as a branch company, focuses on VFD production with over 20 years of expertise.
Inverter Advantages
  • Compact Design: Advanced modular design saves over 30% space compared to same-power inverters
  • Enhanced Excitation Performance: Automatically adjusts motor excitation current for improved efficiency and energy savings
  • Multiple Display Options: Digital or LCD operation panels for comprehensive parameter monitoring
  • Universal Drive Capability: Compatible with three-phase asynchronous motors, permanent magnet synchronous motors, and servo motors
  • High Reliability: Long-life components, robust substrate coatings, ROHS compliant, CE certified
Technical Specifications
ModelAD10-4R0G-T4-B
Motor Power4kW / 5HP
Rated Output Capacity5.9 KVA
Rated Output Current9A
Output Frequency0.01-400 Hz
Carrier Frequency1-16 KHz
Overload Capacity150% for 60s, 200% for 3s
Input Current10.5A
Input Voltage & Frequency3 phase 380V, 50-60Hz
Voltage Range315V-450V
Cooling SystemForced Cold Air
Brake UnitIn-built
Input Voltage Specifications
Input Voltage Frequency Model Input Current (A) Motor Power (KW) Motor Horsepower (HP) Rated Output Capacity (KVA) Output Current (A) Output Frequency Carrier Frequency
1AC 220V 50/60Hz AD10-0R7G-S2B8.20.7511.540.1-400Hz1-16KHz
AD10-1R5G-S2B141.5237
AD10-2R2G-S2B232.2349.6
3AC 380V 50/60Hz AD10-0R7G-T4B3.40.7511.52.10.1-400Hz1-16KHz
AD10-1R5G-T4B51.5233.8
AD10-2R2G-T4B5.82.2345.1
AD10-4R0G-T4B10.53.755.99
AD10-5R5G-T4B14.65.57.58.913
AD10-7R5G-T4B20.57.5101117
AD10-011G-T4B2611151725
Inverter Applications
Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load 1
Factory Environment
Our motor manufacturing facility features extensive production lines and comprehensive product capabilities
Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load 2 Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load 3 Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load 4 Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load 5
Certifications
CE, ISO9001, CCC and other quality certifications
Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load 6
Packaging
Ld320 High-Stability Inverter Guaranteeing Accurate Speed Control Even Under Heavy Mechanical Load 7
Frequently Asked Questions
Are you a factory or trading company?
LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We provide comprehensive pre-sale, in-sale, and after-sale services with customer-first principles for long-term cooperation.
What are your terms of delivery?
Generally FOB, with options for CNF, CIF and DDP based on customer requirements.
What's the delivery time?
15 to 35 days after receiving advance payment.
