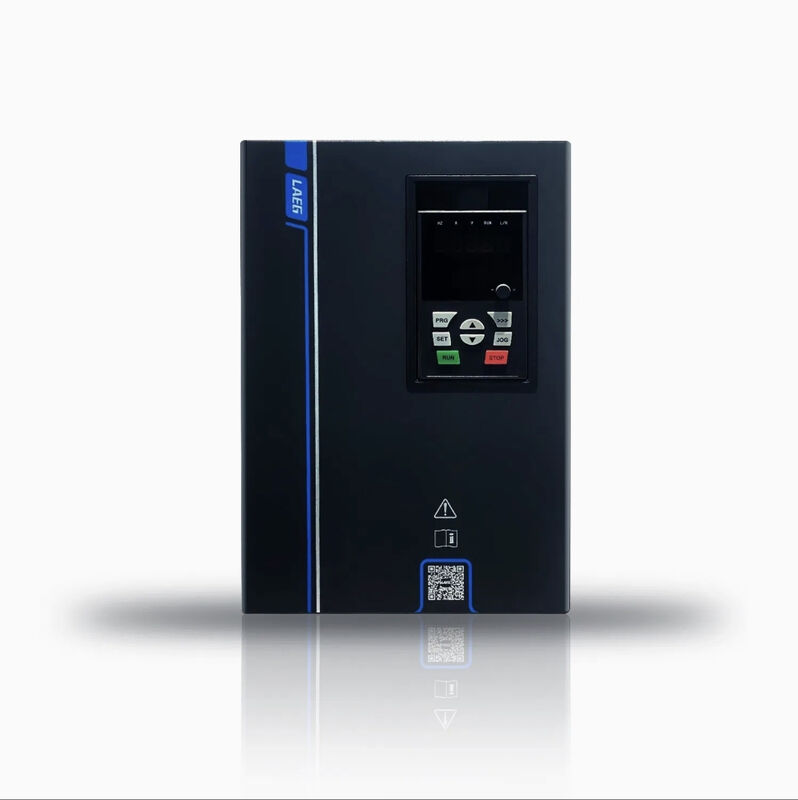

Hot Selling 5.5kw 380V 3phase VFD AC Drive Variable Frequency Inverter

Product Details:

Detail Information

Model NO.:

AD10-5R5G-T4-B

Principle Of Work:

Vector Control Transducer

Switch Mode:

PWM Control

Main Circuit Type:

Voltage

Voltage Of Power Supply:

Low Voltage Variable-Frequency Drive

Link Of Transformation:

AC-DC-AC Variable-Frequency Drive

Nature Of DC Power:

Voltage Variable-Frequency Drive

Function:

Simple Type, Textile Special, Constant Torque Universal Type

Brand:

Laeg

Protection Degree:

IP55/65

Voltage:

380V, Or Customized

Frequency:

50Hz, 60Hz

Output Frequency:

0.01-400 Hz

Transport Package:

Wooden Cases

Specification:

12*9*9 Cm

Trademark:

LAEG

Origin:

Anhui China

HS Code:

8504400090

Production Capacity:

5000/Months

Highlight:

High Light

Highlight:

5.5kW Variable Frequency Drive

Economic Series Variable Frequency Drive

PWM Vector Variable Frequency Drive

Trading Information

Minimum Order Quantity:

Price:

Product Description

Company profile

After more than 55 years of construction and development, Lu 'an Jianghuai Motor has become the largest industrialized enterprise in the small, medium and large motor industry, with the most complete product series and the most perfect service network. Its main products include various high-efficiency and energy-saving low-voltage/high-voltage motors, DC motors, high-efficiency explosion-proof motors, special motors, permanent magnet motors, and other synchronous/asynchronous motors. Luan 'an motors are mainly applied in industries such as power stations, metallurgy, steel, sugar making, coal mining, machinery, petroleum, chemical engineering, water conservancy, cement, papermaking, environmental protection, and pharmaceuticals. ANHUI LAEG is the branch of Luan Jianghuai motor company, we focus on producing vfd over 20 years.

Inverter advantage

More compact size
With advanced modular design, the volume is saved by more than 30% compared with the same power inverter, make customer's installation space more flexible.

Better excitation performance
Automatically adjust the excitation current of the motor, improve the efficiency of the motor, and save energy when the load is small.

Variety of display methods for selection
By selecting the double selection or LCD operation panel, more operating parameters can be visually observed, and convenient for customers maintain and adjust.

All drive all-around
In the sensorless state, three-phase asynchronous motor, permanent magnet synchronous motor, servo motor can be dragged, and the best energy-saving effect can be achieved.

High reliability
The use of long-lived fans, capacitors and other core components, as well as thicker standard substrate coatings, enhance the reliability and resistance of the inverter, so that users benefit in the long term, the products meet the ROHS requirements of health and environmental protection, and pass CE certification

lnput voltage Frequency	Model	Input current (A)	Motor power (KW)	Motor horsepower (HP)	Rated output capacity (KVA)	Output Current(A)	Output frequency	Carrier frequency
1AC 220V 50/60Hz	AD10-0R7G-S2B	8.2	0.75	1	1.5	4	0.1-400HZ	1-16KHz
	AD10-1R5G-S2B	14	1.5	2	3	7
	AD10-2R2G-S2B	23	2.2	3	4	9.6
3AC 380 50/60Hz	AD10-0R7G-T4B	3.4	0.75	1	1.5	2.1
	AD10-1R5G-T4B	5	1.5	2	3	3.8
	AD10-2R2G-T4B	5.8	2.2	3	4	5.1
	AD10-4R0G-T4B	10.5	3.7	5	5.9	9
	AD10-5R5G-T4B	14.6	5.5	7.5	8.9	13
	AD10-7R5G-T4B	20.5	7.5	10	11	17
	AD10-011G-T4B	26	11	15	17	25

inverter application

Factory environment

Our motor factory scale and product line, products details

Certificate

We have CE, ISO9001, CCC and ect certificate

package

Q: Are you a factory or trading company?
A: LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.

Q: What about the warranty?
A: We offer 12 month warranty period as the quality guarantee.

Q: Can you do OEM?
A: Yes , we offer OEM.

Q: How about your service?
A: We have pre-sale service, in-sale service and after-sale service.What we pursue is long-term cooperation,
so our principle is customer first.

Q: What are your terms of delivery?
A: Generally we ship in FOB term, but we couldoffer the solution for CNF, CIF and DDP, which all based on your requirement.

Q: What's the delivery time?
A: 15 to 35 days after receiving your payment in advance.
